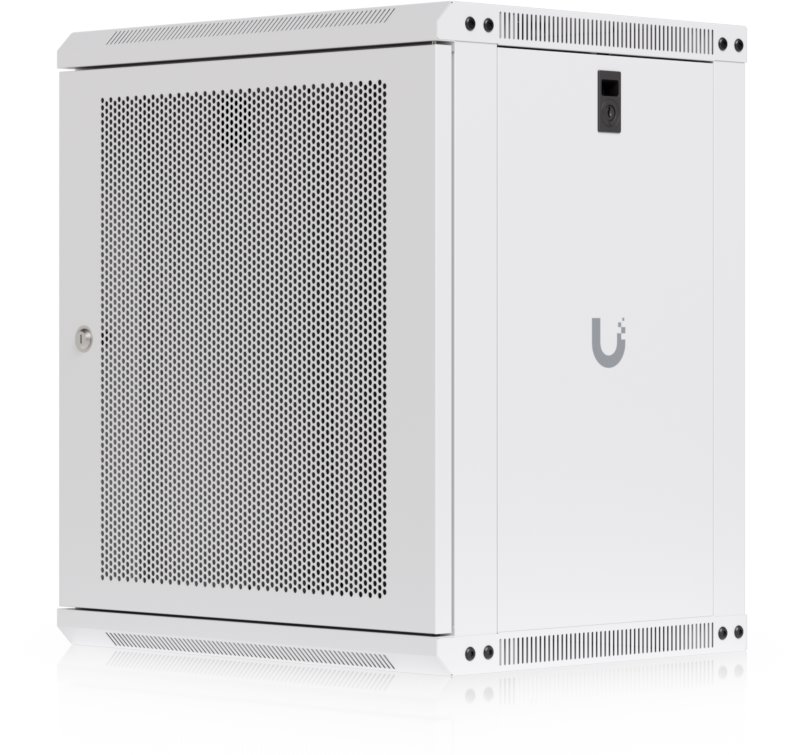

Ubiquiti UACC-Rack-12U-Wall-450-P, Wall-mounted data rack cabinet 19" 12U/450mm, perforated door

The space-saving wall-mounted cabinet offers an ideal foundation for a clear and safe installation of network infrastructure in offices, server rooms, and technical rooms. The capacity of 12U with a 4-post design according to the EIA/ECA-310-E standard provides ample space for switches, routers, and other active components. The robust all-steel construction made of SPCC steel with a white powder coating looks professional while ensuring long durability. The perforated front steel perforated doors for optimized airflow can easily have their opening direction changed according to the room layout.

Flexibility, cooling, and security

The installation is facilitated by the adjustable mounting depth of 283–305 mm, allowing the cabinet to be adapted to variously deep components. The stability of the entire assembly is supported by a load capacity of up to 50 kg and integrated grounding points. For optimal operation, there is an integrated fan with a noise level of up to 50 dB(A), which ensures active cooling. Comfort during installation and maintenance is increased by removable side panels and thoughtful cable passages. Technology protection is guaranteed by a locking system for the doors and side panels with supplied keys.

Key features

• Capacity 12U, 4-post design with square holes according to EIA/ECA-310-E
• Adjustable mounting depth 283–305 mm (step 22 mm)
• Robust all-steel construction made of SPCC steel, load capacity up to 50 kg, grounding points
• Perforated front steel doors, option to change the opening direction
• Integrated fan for active cooling, noise level 50 dB(A)
• Removable and lockable side panels, cable passages at the top, bottom, and back
• Security with a door lock and 4 locks for side panels, 2 keys included in the package
