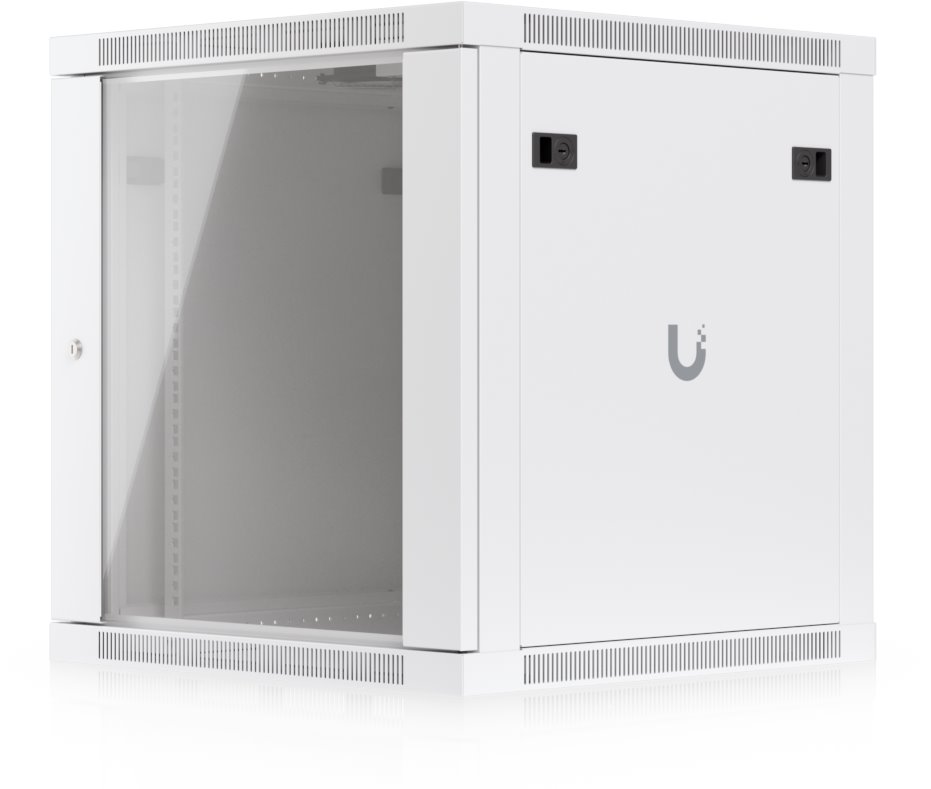

Ubiquiti UACC-Rack-12U-Wall-600-G, Wall-mounted data rack cabinet 19" 12U/600mm, glass door

Ideal choice for professional installations in limited spaces, where emphasis is placed on clarity, safety, and reliability. The wall-mounted cabinet with a capacity of 12U and a four-post design offers ample space for switches, routers, and patch panels while maintaining compact dimensions. The robust construction made of SPCC steel with a thickness of 1.2 mm and white powder coating ensures long lifespan and a professional appearance. Glazed front doors allow for easy visual inspection of the equipment and thanks to the reversible design, it adapts to the room layout.

Flexibility, cooling, and safe operation

The installation of various network equipment is facilitated by the adjustable mounting depth of 448–508 mm, while the load capacity of up to 80 kg provides sufficient reserve for both standard and more demanding configurations. Optimal operating conditions are supported by the built-in fan with a noise level of up to 50 dB(A), which ensures effective cooling. Maintenance comfort is enhanced by removable side panels and thoughtful cable pass-throughs. Protection for the installed equipment is guaranteed by the locking system for doors and panels along with grounding points for safe connections.

Key features

• Capacity 12U, four-post construction with square mounting holes
• Wall mounting, compact dimensions 639 × 600 × 598 mm, weight 28.2 kg
• Adjustable mounting depth 448–508 mm (step 20 mm)
• Load capacity of up to 80 kg, construction made of SPCC steel with a thickness of 1.2 mm
• Built-in fan for active cooling, noise level 50 dB(A)
• Glazed front doors, left/reversible opening
• Removable and lockable side panels, cable pass-throughs at the top, bottom, and back
• Secured with door lock and 4 locks on side panels, 2 keys
• Grounding eyes, compatibility with accessories UACC-Rack-Shelf-CLV and UACC-Rack-PM-Kit
