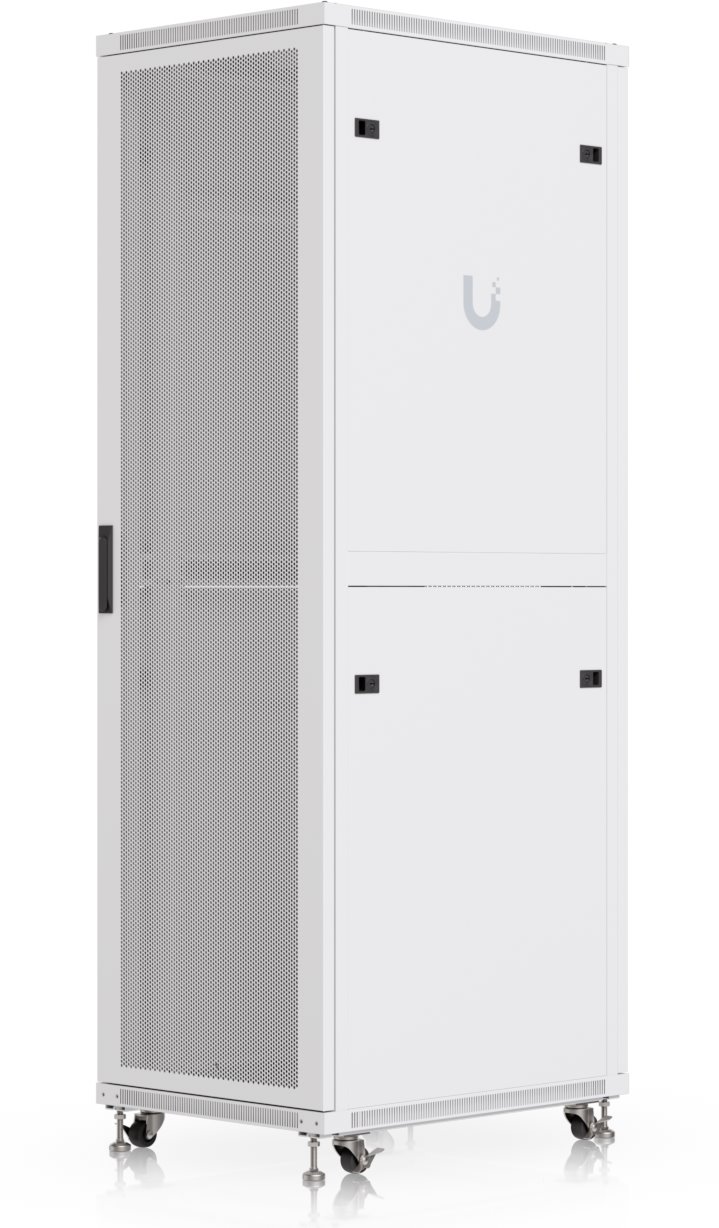

Ubiquiti UACC-Rack-42U-800-P, Rack data cabinet 19" 12U/800mm, perforated door

Designed for demanding data center and server room environments where high capacity, strength, and clarity are key. The standing rack with a height of 42U and a four-column construction provides generous space for servers, networking elements, and power infrastructure. The robust construction made of SPCC steel sheet with a white powder finish guarantees long life and a professional appearance. Perforated front doors allow for optimal air flow.

Performance, cooling, and maximum security

The installation of technologies of various depths is enabled by adjustable mounting depth of 607.2–682.2 mm, while the static load capacity of up to 800 kg provides ample reserve even for very heavy installations. Stable operation is supported by a built-in fan for active cooling and thoughtful cable routing passages for organized cabling. Easy handling is ensured by lockable wheels, while leveling feet provide firm placement. Protection of technology is guaranteed by a comprehensive locking system for doors and side panels, which meets the requirements for the secure operation of critical infrastructure.

Key features

• Standing server rack 42U, 4-column construction, EIA/ECA-310-E standard
• Maximum static load capacity of 800 kg, rolling load capacity of 320 kg
• Adjustable mounting depth 607.2–682.2 mm (step 15 mm)
• Perforated front and rear doors, reversible opening
• Built-in fan for active cooling of installed equipment
• Four removable and lockable side panels
• Wheels with locking and leveling feet for stable installation
• Cable passages in the top and bottom (335 × 52.5 mm)
• Comprehensive security: door locks, 8 locks for side panels, 3 keys included
