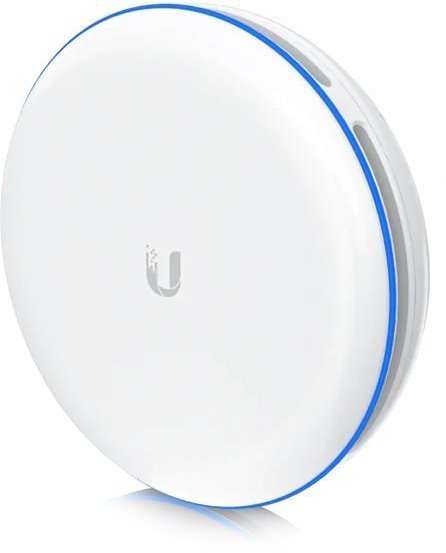

Ubiquiti UBB-XG-Single, UniFi Building Bridge XG, 1 unit

The UniFi Building to Building Bridge XG, developed by Ubiquiti Networks, is a compact device for connecting two buildings over short distances, which operates at a frequency of 60 GHz and meets standards 802.11ad/ay. This device is equipped with a backup 5 GHz module (Wi-Fi 5 - 802.11ac) and achieves distances of over 500 meters. It has a Gigabit LAN port with PoE support, one SFP+ interface, and Bluetooth for easy setup using the UniFi Network mobile app. The use of this device is limited to bridge mode and supports multiple channel widths in the 60GHz band - 2160 and 4320 MHz. The manufacturer states a maximum throughput of up to 6 Gbps.

Key Features

• Compact dimensions - 192 × 192 × 59 mm
• 60 GHz spectrum with low interference - 58 to 64 GHz
• Range 500+ m
• Throughput 6 Gbps at 60 GHz, 866 Mbps in the 5 GHz band
• Supports channel bonding for higher throughput - 2160 and 4320 MHz
• Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800- depends on the location of use
• Gigabit LAN port with passive PoE support (48 V DC), max. consumption 31.2 W
• Setup via the UniFi Network app from version 6.3

Package Contents

• Device
• Bracket with fine tuning
• PoE power adapter 48 V / 0.65 A
• Power cable
