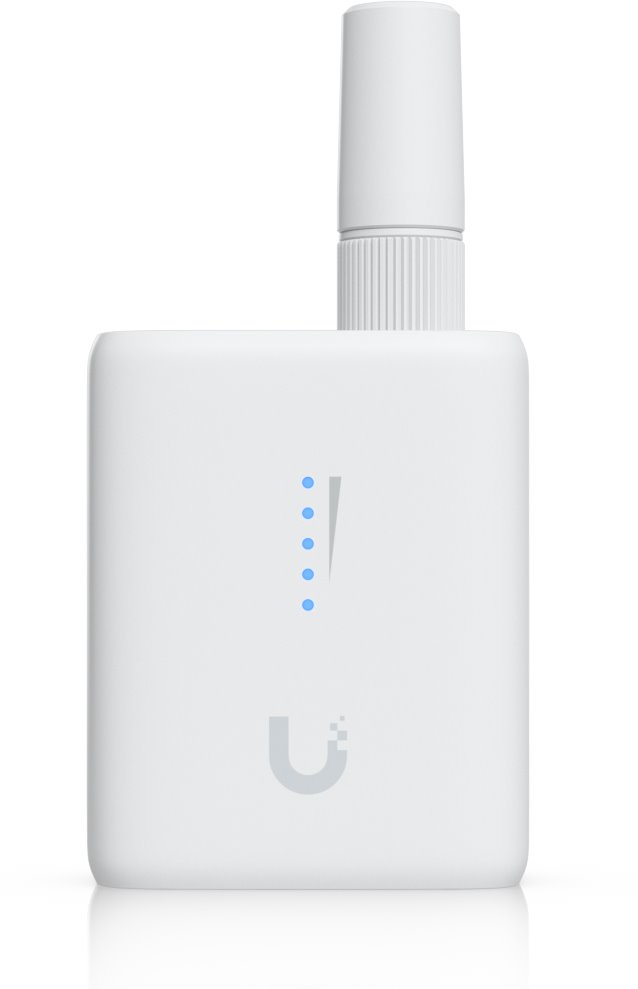

Ubiquiti UDB-IoT, UniFi Device Bridge IoT

The ultra-compact bridge (adapter from Ethernet to WiFi) opens an easy way to connect wired IoT and other network devices to the UniFi ecosystem via Wi-Fi with a transmission speed of up to 300 Mbps. Thanks to the automatic technology WiFi Auto-Link, it establishes a stable connection on the 2.4 GHz frequency and creates a reliable wireless infrastructure for printers, sensors, and other devices without integrated WiFi.

Flexibility of Power and Advanced Connectivity

With power supply via USB-C or a 4-pin DC connector, the device can be easily integrated almost anywhere – from offices, through industrial installations, to smart homes. The simple design allows for mounting using a bracket, screw, or on a DIN rail. It includes an integrated antenna with a gain of 4 dBi and an RP-SMA connector for connecting an external 3 dBi antenna, ensuring quality coverage in environments with poor signal penetration. There is also a 10/100 Mbps RJ-45 network interface for fast wired device connection and permanent WPA2 AES encryption for secure operation.

Professional Solution for IoT with Universal Deployment

A wide operating temperature range of -10 to +50 °C and CE, FCC, IC, and NDAA certifications ensure resilience to professional demands. The compact design is ideal for small installations where discretion, easy integration, and long-term reliability are crucial. With support for MIMO 2 × 2 and Wi-Fi 4 standard, the bridge becomes a great solution for connecting printers, sensors, and even cameras.

Key Features

• Automatic WiFi Auto-Link connection on 2.4 GHz for easy integration into UniFi.
• Support for Wi-Fi 4 (802.11n) with MIMO 2 × 2 and speeds of up to 300 Mbps.
• External power via USB-C or 4-pin DC connector (no POE).
• Integrated 4 dBi antenna and the possibility of an external omnidirectional antenna.
• 10/100 Mbps RJ-45 interface for connecting wired devices.
• WPA2 AES encryption for secure communication.
• Compact dimensions, low weight, and universal mounting options.
• Operating temperature range of -10 to +50 °C and CE, FCC, IC, NDAA certifications.
