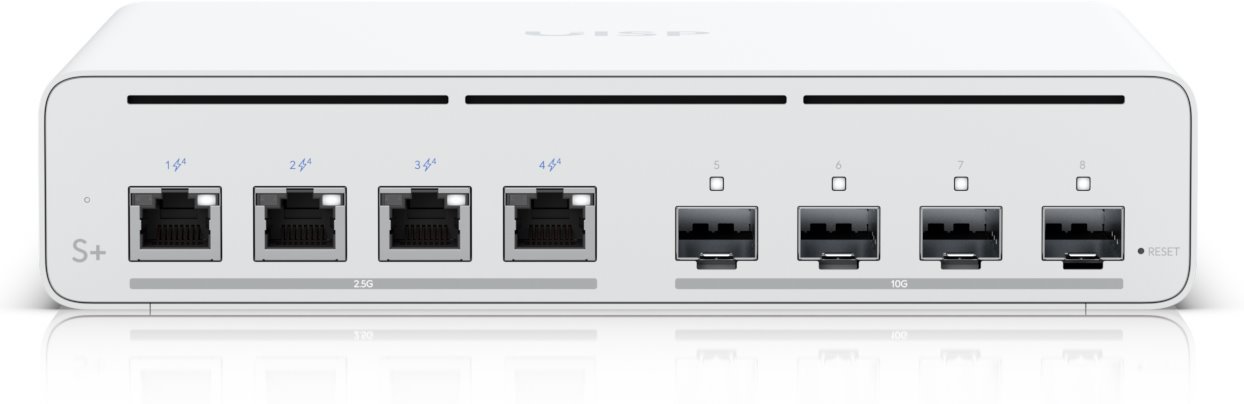

Ubiquiti UISP-S-Plus, UISP Switch Plus

UISP-S-Plus is an ideal switch for deployment between ISP providers. It is a L2 PoE switch without fans, with 4x 2.5 Gigabit LAN and 4x SFP/SFP+ ports for additional extension using optical fiber. The UISP Switch is a cost-effective solution for a smaller central node with a smaller number of 2.5 and 10 Gbps devices. With a total 160W PoE budget and a maximum of 40W/port (4-wire pairs) or 20W/port (2-wire pairs), the switch provides considerable power to each connected radio in the PoE ports . Higher reliability is guaranteed by a redundant power supply via Power TransPort or a DC connector with an input voltage of 27V and a current of 7A. Management is handled via web interfaces or centrally via a UISP application that manages all your UISP devices.

Key Features

• (4) 2.5 Gigabit LAN, support for passive 27V PoE and power supply via 2 or 4 pairs of wires
• (4) 1/10Gb SFP+ port
• 160W PoE budget, max. 40W/port (4-wire pairs), max. 20W/port (2-wire pairs)
• Silent operation without a fan
• Port isolation, rate limiting and DHCP snooping features
• Mounting in a 19" rack - the kit is included in the package
• Easy setup using Bluetooth technology via UISP mobile app or web interface

Package contents

• Device
• Power adapter 27V / 7A
• Power cord
• Connecting UISP DC cable
• Rackmount kit + screws
