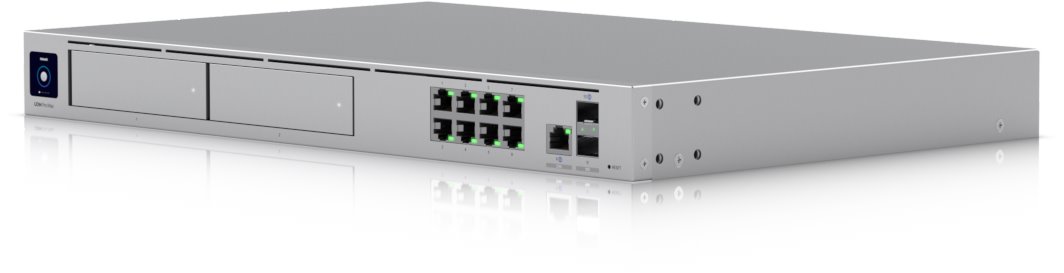

Ubiquiti UniFi Dream Machine Pro Max

UniFi Dream Machine Pro Max from Ubiquiti Networks is an all-in-one network solution for small and medium-sized businesses. The router offers significantly higher performance than the previous generation, it is equipped with a 4-core ARM Cortex-A57 CPU clocked at 2.0 GHz, 8 GB RAM and 32 GB eMMC internal storage and 128 GB SSD. With such equipment, the throughput test showed a respectable 5 Gbps using iPerf3. It is a very powerful device with a size of 1U in a 19" rack and combines the following functions:

• Manageable 8-port Gigabit switch with one SFP/SFP+ port and VLAN support
• Option of multiple WAN via 2.5-Gigabit Ethernet or SFP/SFP+ port
• USG - UniFi Security Gateway or Router with advanced IDS/IPS and DPI functions
• UniFi Network
• UniFi Protect - 2 empty 3.5" HDD slots are used for storing recordings from cameras
• Support for backup power using the SmartPower connector
• 1.3" Touch screen for monitoring the current network status

Advantages of the UniFi solution

• Zero Handoff Roaming - uninterrupted transition between individual APs
• Wireless uplink (suitable where it is impossible to get a data cable)
• Up to 4 SSIDs
• Detailed traffic statistics
• Guest network
• Load balance - maintaining an even load / switching clients
• Speed limiting for each SSID

Package contents

• Device
• Mounts for 19" rack
• Power cord
