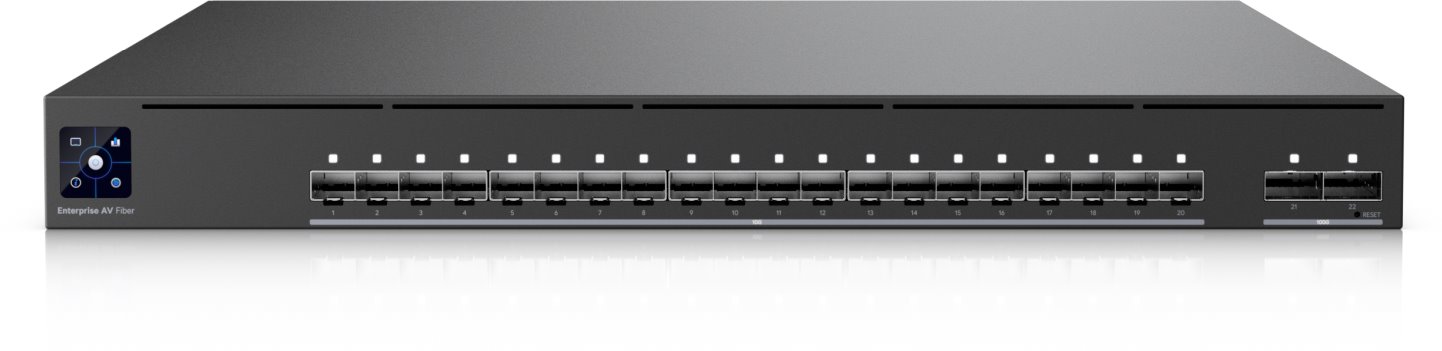

Ubiquiti UniFi Enterprise Audio/Video Fiber Switch

Switch designed for extensive AV installations and production studios, where maximum accuracy of image and sound transmission is crucial. It offers 20× 10G SFP+ ports and 2× 100G QSFP28 uplinks for high-capacity optical connectivity with minimal latency. Support for SMPTE ST 2110, SDVoE, and AES67 standards allows for seamless integration of professional video and audio technologies into a unified infrastructure.

Precise synchronization without compromise

Stable operation is ensured by a highly accurate OCXO clock with PTP timing support and the option to connect an external GPS Grandmaster source via an SMA connector. Due to deterministic synchronization, it is ideal for live production, broadcasting, and critical AV applications requiring perfectly synchronized media transmission. The integrated Etherlighting™ technology also facilitates navigation in cabling and management of network infrastructure.

Professional management and high availability

A dedicated OOB management port allows for separate management outside of data traffic and ensures access via SSH even during main network outages. Console port provides direct serial access to the CLI for quick diagnostics, recovery, or configuration of the device. The design is optimized for installation in a 4-post rack, or alternatively using a middle bracket or shelf in 2-post rack solutions.

Key features

• 20× 1/10G SFP+ ports
• 2× 40/100G QSFP28 uplinks
• Support for SMPTE ST 2110, SDVoE, and AES67
• PTP timing with an accurate OCXO clock
• Option for GPS Grandmaster synchronization via SMA
• Etherlighting™ technology
• Dedicated OOB management port
• Console port for CLI management and diagnostics
• Suitable for professional AV and modern enterprises
• Optimized for installation in a 4-post rack

Package contents

• Device
• Power cable
• Rack mounting accessories
