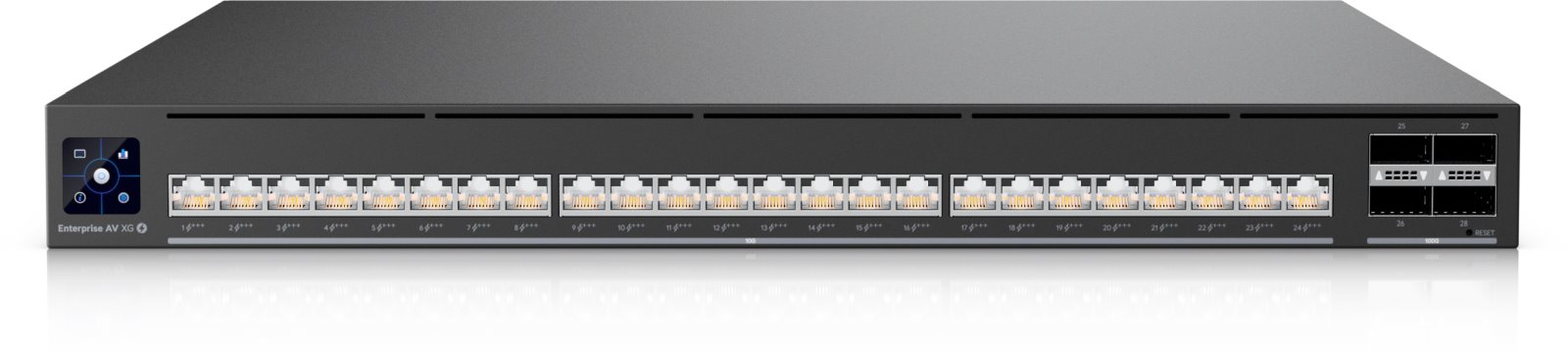

Ubiquiti UniFi Enterprise Audio/Video XG 24 PoE Switch

Switch designed for professional audio/video infrastructures with high demands on performance, stability, and precise synchronization. It offers 24× 10G PoE+++ ports for power and data transmission over a single cable and 4× 100G QSFP28 uplinks for extremely fast backbone connections. An ideal solution for conference centers or large AV installations using modern IP technologies.

Perfect media synchronization

With support for PTP timing, SMPTE ST 2110 standards, SDVoE, and AES67, it enables precisely synchronized transmission of audio and video in real time. The integrated OCXO clock ensures exceptionally stable timing, and the option to connect an external GPS Grandmaster source via SMA connector elevates synchronization to the level of professional broadcasting systems. Additionally, Etherlighting™ technology facilitates cable management and port management.

Reliable management and maximum availability

The dedicated OOB management port provides separate access for management via SSH even when the main network is unavailable. The console port allows direct serial access to the CLI for diagnostics, configuration, and recovery of the device. PoE power enables powering extensive AV technologies, cameras, or professional endpoints from a single central element of the infrastructure.

Key features

• 24× 10G PoE+++ ports (802.3af/at/bt, up to 90W/port)
• 4× 40/100G QSFP28 uplinks
• PoE budget 1050W (redundancy) or up to 2150W (combination of both sources)
• Support for PTP timing
• Highly accurate OCXO clock
• GPS Grandmaster synchronization option via SMA
• Etherlighting™ technology
• Dedicated OOB management port
• Console port for CLI management
• Optimized for 4-post racks

Package contents

• Device
• Power cable
• Rack mounting accessories
