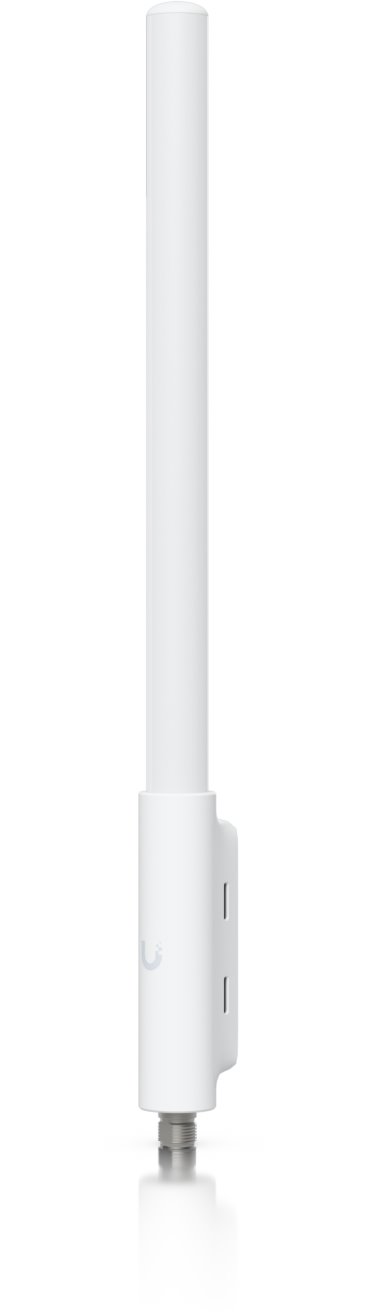

Ubiquiti UniFi SuperLink high gain omnidirectional antenna

The antenna is designed for reliable coverage in demanding outdoor environments; this omnidirectional antenna significantly enhances wireless communication within UniFi Protect. Thanks to high gain of 7 dBi for SuperLink and 4 dBi for Bluetooth, it allows stable data transmission over large distances, up to 5 km for SuperLink and 100 m for Bluetooth. The wide operating frequencies of 860–930 MHz and 2400–2480 MHz ensure optimal compatibility and smooth operation even in extensive areas, industrial zones, or open landscapes.

Durable construction and easy installation

The robust housing made from polycarbonate reinforced with fiberglass, with a rating of IP67 against dust and water, guarantees long-term reliability at temperatures from -40 to +60 °C. The stainless steel bracket allows for secure mounting on poles with a diameter of 25–55 mm and withstands winds of up to 200 km/h. Compact dimensions, a one-meter connecting cable, and full integration with the USL-Gateway facilitate installation and expansion of the security infrastructure without unnecessary limitations.

Key features

• High gain of 7 dBi for SuperLink and 4 dBi for Bluetooth
• Maximum range up to 5 km (SuperLink) and 100 m (Bluetooth)
• Operating frequencies 860–930 MHz and 2400–2480 MHz
• Outdoor rating IP67 resistant to dust and water
• Operating temperatures -40 to +60 °C
• Wind resistance up to 200 km/h
• Stainless steel mount for poles 25–55 mm
• Full compatibility with USL-Gateway and UniFi Protect
