Ubiquiti UniFi Switch Aggregation Professional

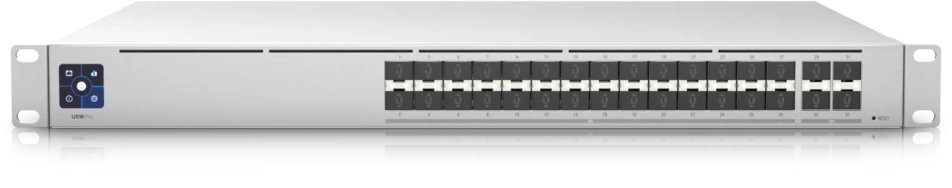

USW-Aggregation-Pro is a fully manageable L3 switch in a 19" rackmount chassis with 4× SFP28 (supporting 1 G / 10 G / 25 Gbps) and 28× SFP+ (1 G / 10 Gbps support) ports: With a 1.3" touch screen, you can instantly see the most important information such as error conditions, warnings, port statistics, power consumption of connected devices, network load and more. USW-Aggregation-Pro is managed using the UniFi Network or a mobile application, which allows you to easily create, scale and monitor your corporate network.

Key Features

• (28) 1G / 10Gbps (SFP+)
• (4) 1G / 10G / 25Gbps (SFP28) - speed on all 4 ports is limited by the slowest of them, or mix. 1G and 10G modules
• 760 Gbps switching capacity
• Touch screen
• Backup power via SmartPower RPS connector
• Supported in UniFi Network from version 6.1.25

Management via UniFi Network

USW-Aggregation-Pro does not have web management but is managed centrally by UniFi Network with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

Redundant power

This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.

Package Contents

• Devices
• Power cord
• 19" rack mounts
