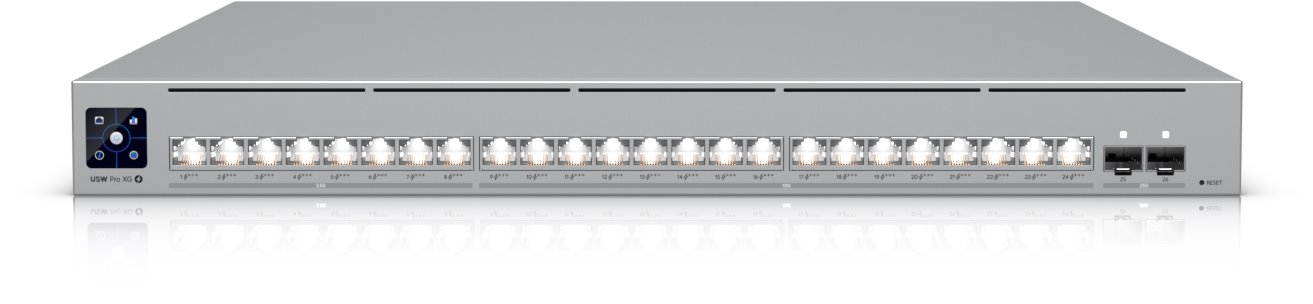

Ubiquiti UniFi Switch Pro XG 24 PoE, 720W

UniFi Switch Pro XG 24 PoE is a rackmount manageable 10 Gigabit L3 Switch with PoE, featuring a switching capacity of 460 Gbps, (16) 10 Gigabit + (8) 2.5 Gigabit ports (supporting 802.3af/at/bt PoE), two SFP28 (1/10/25Gbps) slots, and a total PoE budget of 720 W. The switch can be powered via standard 230 V or through the UniFi SmartPower RPS, mainly used as backup power in case of internal PSU failure. A new feature is Etherlighting, color port lighting indicating port location, speed, or VLAN status.

Key Features

• (16) 1G/2.5G/5G/10 Gbps + (8) 100M/1G/2.5G LAN ports
• All ports support 802.3af/at/bt PoE (90 W per port)
• (2) 1/10/25G SFP+ slots
• 720 W PoE budget – PoE on all Ethernet ports
• 1.3" touch display
• Etherlighting – port backlighting
• Backup power via SmartPower RPS connector
• Supported in UniFi Network from version 9.1.120

Management via UniFi Network

The UniFi switch lacks web management but is centrally managed through UniFi Network with UniFi mobile app support, offering a broad set of advanced L2 and L3 switching protocols and features, including per-port operational modes (switching, mirroring, or aggregation). The UniFi Network Controller and mobile app allow administrators to configure and monitor virtually all switch functions via a graphical interface from anywhere.

Package Contents

• Device
• Power cable
• Front 19" rack mounting brackets
• Sliding rear 19" rack mounting brackets
