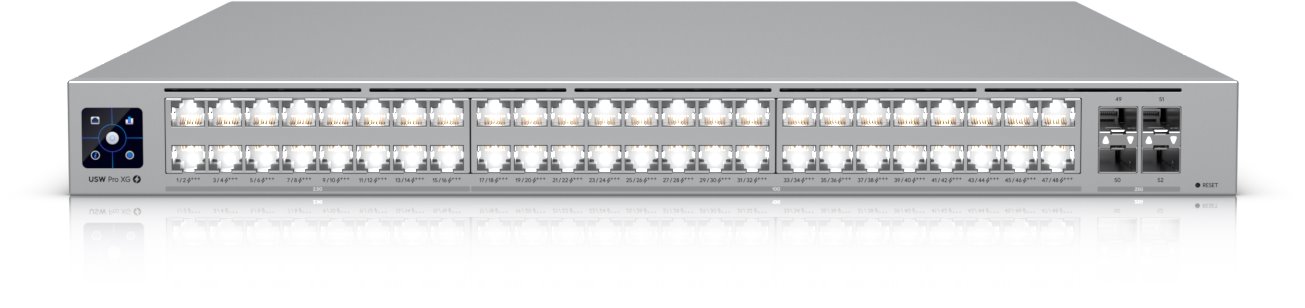

Ubiquiti UniFi Switch Pro XG 48 PoE, 1080W

The UniFi Switch Pro XG 48 PoE is a rackmount manageable 10-Gigabit L3 Switch with PoE, offering a switching capacity of 920 Gbps, (32) 10 Gigabit + (16) 2.5 Gigabit ports (supporting 802.3af/at/bt PoE), four SFP28 (1/10/25Gbps) slots, and a total PoE budget of 1080 W. The switch can be powered via standard 230 V or through the UniFi SmartPower RPS, which serves as a backup power source in case of internal power supply failure. A new feature is Etherlighting, color port lighting that indicates port position, speed, or VLAN status.

Key Features

• (32) 1G/2.5G/5G/10 Gbps + (16) 100M/1G/2.5G LAN ports
• All ports support 802.3af/at/bt PoE (90 W per port)
• (4) 1/10/25G SFP28 slots
• PoE budget of 1080 W – PoE on all Ethernet ports
• 1.3" touch display
• Etherlighting – port backlighting
• Backup power via SmartPower RPS connector
• Supported in UniFi Network from version 9.1.120

Management via UniFi Network

The UniFi switch does not have a web management interface but is centrally managed using UniFi Network with support for the UniFi mobile app. It offers a comprehensive set of advanced L2 and L3 switching protocols and features, including per-port operating modes (switching, mirroring, or aggregation). The UniFi Network Controller and mobile app allow administrators to configure and monitor virtually all switch functions via a graphical user interface from anywhere.

Package Contents

• Device
• Power cable
• Front 19" rack mounting brackets
• Rear sliding 19" rack mounting brackets
