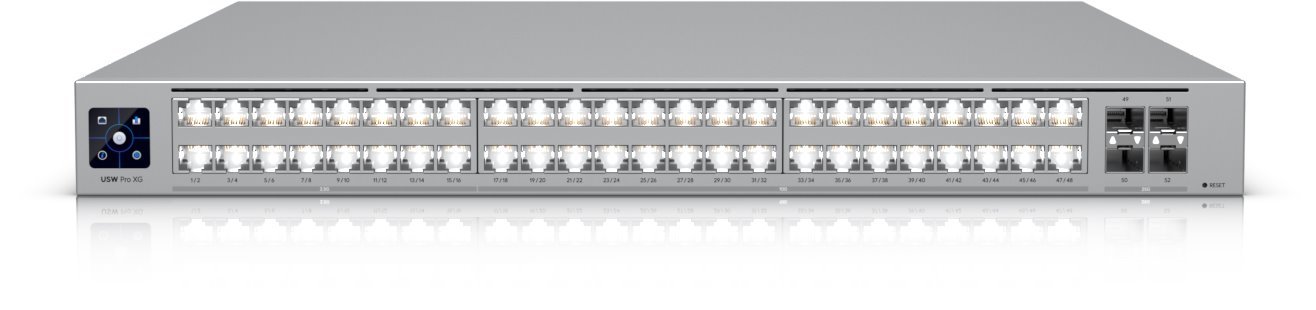

Ubiquiti UniFi Switch Pro XG 48

The UniFi Switch Pro XG 48 is a rackmount manageable 10-Gigabit L3 Switch with a switching capacity of 920 Gbps, featuring (32) 10 Gigabit + (16) 2.5 Gigabit ports and four SFP28 (1/10/25Gbps) slots. The switch can be powered via standard 230 V or through UniFi SmartPower RPS, which primarily serves as a backup power source in case of internal power supply failure. A new feature is Etherlighting, color port lighting that indicates port location, speed, or VLAN identification.

Key Features

• (32) 1G/2.5G/5G/10 Gbps + (16) 100M/1G/2.5G LAN ports
• (4) 1/10/25G SFP+ slots
• 1.3" touch display
• Etherlighting – port backlighting
• Backup power via SmartPower RPS connector
• Supported in UniFi Network from version 9.0.114

Management via UniFi Network

The UniFi switch does not have a web management interface but is centrally managed using UniFi Network with support for the UniFi mobile app. It offers a wide range of advanced L2 and L3 switching protocols and features, including per-port operating modes (switching, mirroring, or aggregation). The UniFi Network Controller and mobile app allow administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.

Package Contents

• Device
• Power cable
• Front 19" rack mounting brackets
• Rear sliding 19" rack mounting brackets
