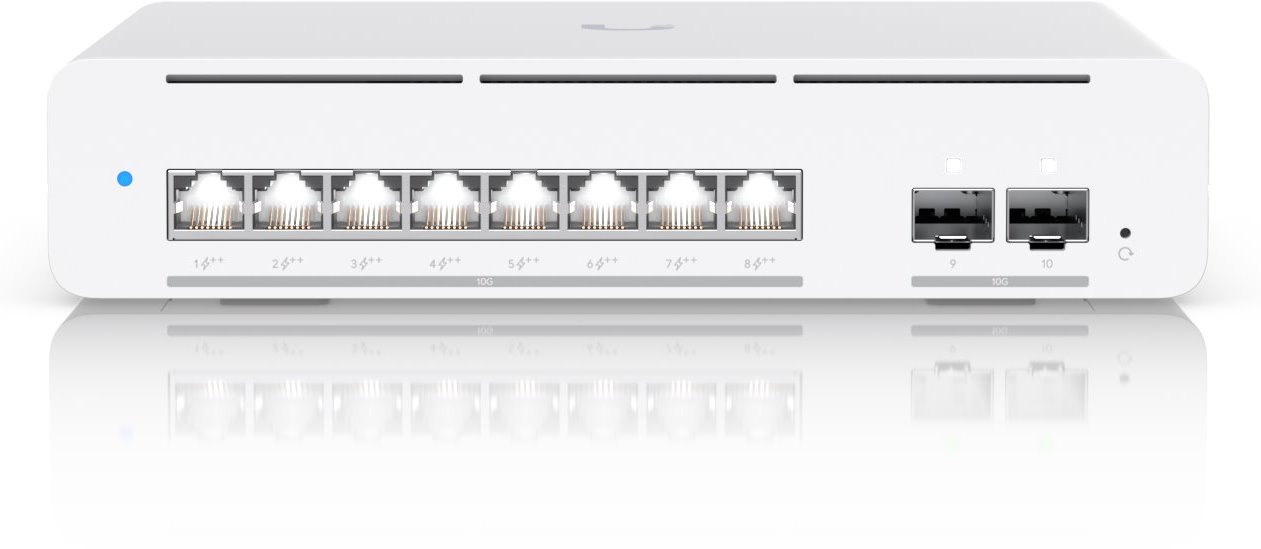

Ubiquiti UniFi Switch Pro XG 8 PoE, 155W

The UniFi Switch Pro XG is a reliable managed L3 10-Gigabit Switch with PoE, featuring a switching capacity of 200 Gbps, eight 10-Gigabit ports (supporting 802.3af/at/bt PoE), two SFP+ (1/10 Gbps) slots, and a total PoE budget of 155 W. The switch can be powered via a 54V DC connector using an external 210W power supply. A new feature is Etherlighting: color-coded port lighting indicating port location, speed, or VLAN status.

Key Features

• (8) 1G/2.5G/5G/10 Gbps LAN (802.3af/at/bt PoE)
• (2) 1/10G SFP+ slots
• 155 W PoE budget – PoE on all Ethernet ports
• Etherlighting – illuminated port indicators
• External power via DC connector
• Supported in UniFi Network from version 9.0.114

Management via UniFi Network

The UniFi switch does not have a standalone web interface and is centrally managed via UniFi Network with support for the UniFi mobile app. It offers an extensive set of advanced L2 and L3 switching protocols and features, including per-port operation mode (switching, mirroring, or aggregation). The UniFi Network Controller and mobile app allow administrators to configure and monitor nearly all switch features through a graphical user interface from anywhere.

Package Contents

• Device
• Power adapter – 210W
• Power cable
• Wall-mount brackets
• Screws and wall plugs
