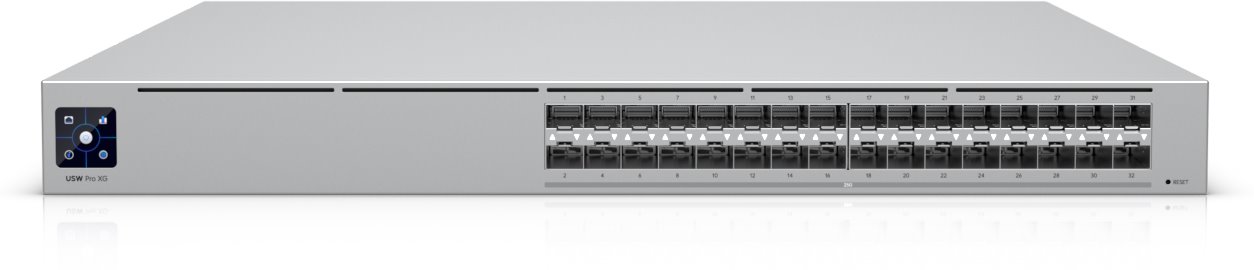

Ubiquiti UniFi Switch Pro XG Aggregation

The USW-Pro-XG-Aggregation is a fully managed L3 switch in a 19" rackmount chassis featuring 32× SFP28 ports (supporting 1G/10G/25Gbps), ideal for the most demanding network nodes. A 1.3" touch display provides instant access to key information such as error states, warnings, port statistics, connected device power consumption, network load, and more. The switch is managed via UniFi Network or the mobile app, allowing you to easily build, scale, and monitor your enterprise network. A new feature, Etherlighting, adds colorful port lighting to indicate port location, speed, or VLAN assignment.

Key Features

• (32) 1G/10G/25Gbps SFP28 ports
• Etherlighting – illuminated port indicators
• 1,600 Gbps switching capacity
• Touchscreen display
• Redundant power via SmartPower RPS connector
• Managed through UniFi Network Controller

Managed via UniFi Network

The switch lacks a built-in web interface and is centrally managed through the UniFi Network Controller with support for the UniFi mobile app. It offers a comprehensive suite of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Controller and mobile app allow administrators to configure and monitor nearly all switch functions through an intuitive graphical interface from anywhere.

Redundant Power

This generation of switches supports redundant power through a dedicated connector for the UniFi SmartPower unit, in case of primary power source failure.

Package Contents

• Device
• Power cable
• Front 19" rackmount brackets
• Sliding rails
