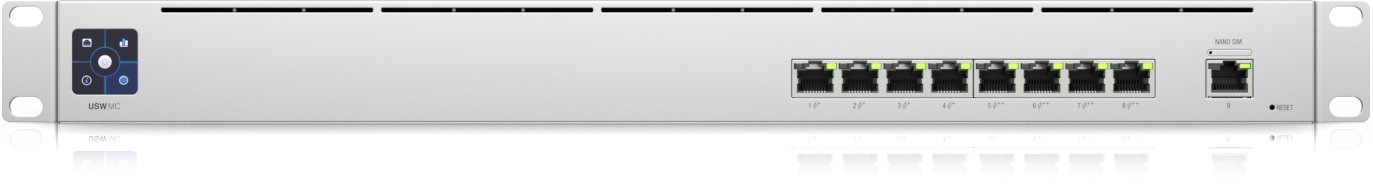

Ubiquiti UniFi Switch USW-Mission-Critical

A very specific PoE switch intended for powering the most important things on the network, such as access systems. It is a switch with 9x Gigabit LAN of which 4 ports support 802.3af/at (30W/port), the other 4 ports support 802.3af/at/bt, a total PoE budget 120W, two 230V AC outputs with a maximum load of 80W and a touch information display.

For increased availability and power backup, the switch offers 3 levels of power protection. The primary option is power from the 230V AC mains, then from the integrated battery with a capacity of 368Wh and lastly from an external 48V battery using a special connectable DC cable.

Key Features

• Designed for critical places - access systems
• 3 power supply methods: 230V AC, Integrated 368Wh lithium battery and External battery - 48V DC
• (9) Gigabit LAN
• (4) 802.3af/at (30W/port) + (4) 802.3af/at/bt (60W/port)
• PoE budget 120W
• Touch information display
• Mounting in a rack with a depth of 700 to 1000 mm
• Possibility of backing up 80W load thanks to 2x 230V AC outputs
• Management via UniFi Network from version 6.2.26

Package contents

• Device
• Mounts for 19" rack
• Power cable 230V AC
• Power cable for battery connection
• Office clip
