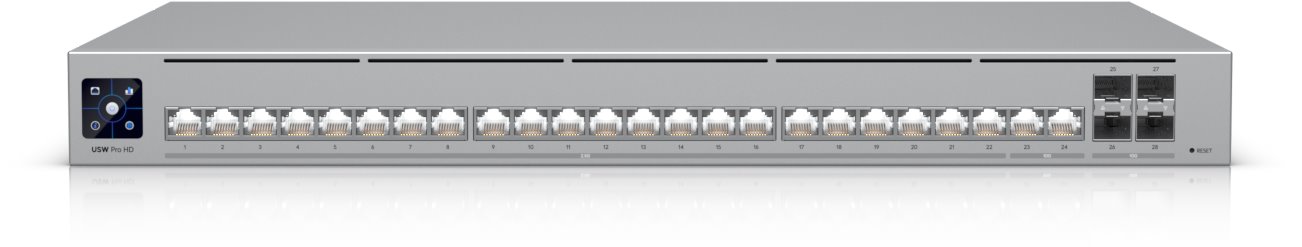

Ubiquiti USW-Pro-HD-24, UniFi Switch Professional HD 24

The UniFi Switch Pro HD 24 is a reliable 2.5 Gigabit L3 managed switch with a switching capacity of 230 Gbps. It features (2) 1/2.5/5/10 Gigabit and (22) 2.5 Gigabit LAN ports, along with four SFP+ slots supporting 1/10Gbps. Equipped with a 1.3" touch display, it provides real-time system data, port statistics, and more. The device supports both 230V power and backup via UniFi SmartPower RPS. The new Etherlighting feature provides color-coded port lighting for quick identification of ports, speeds, and VLANs.

Key Features

• (2) 1/2.5/5/10 Gbps LAN
• (22) 100/1000/2500 Mbps LAN
• (4) 1/10G SFP+ slots
• 1.3" touch display
• Etherlighting for port visibility
• Backup power via SmartPower RPS
• Managed through UniFi Network (8.6.9+)

Centralized Management

The UniFi switch is centrally managed through the UniFi Network and mobile app, offering a wide array of L2/L3 features. It supports configurations like port mirroring, VLAN tagging, and link aggregation, accessible via an intuitive graphical interface.

Redundant Power Supply

Supports backup power via the UniFi SmartPower unit to ensure uninterrupted operation during a primary power failure.

What's in the Box

• Switch
• Power cable
• 19" rack mounts
• Rack installation kit
