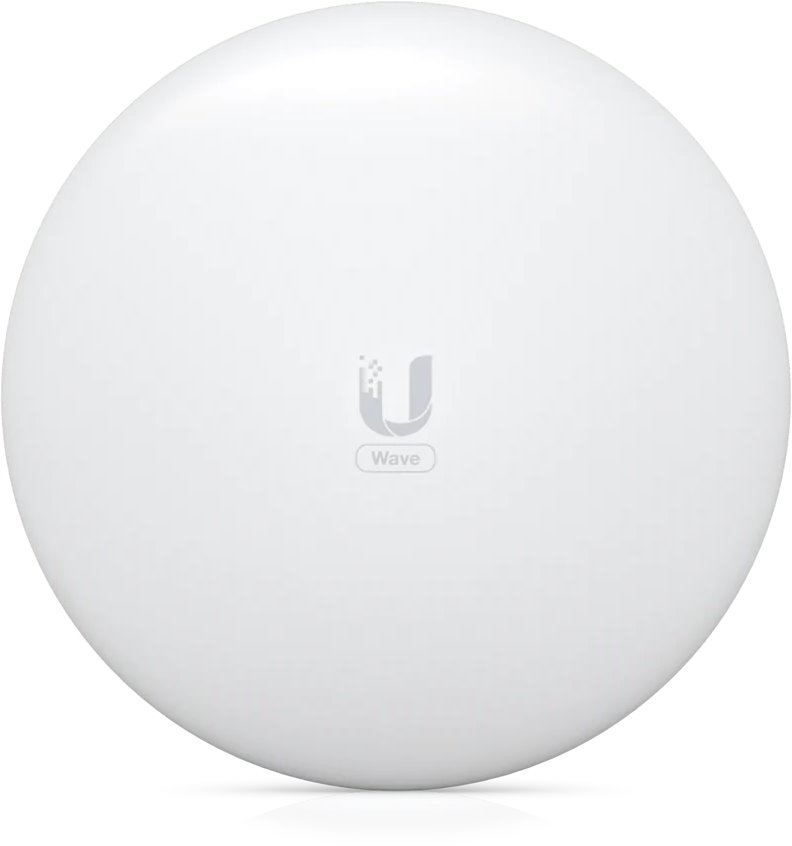

Ubiquiti Wave-LR, UISP Wave Long-Range

Wave Long Range is a 60GHz point-to-multipoint (PtMP) client device with built-in 5GHz backup (WiFi 6 - 802.11ax) from Ubiquiti Networks with a range up to 8 km and is ideal for ISPs. The very compact and durable device is also equipped with integrated GPS, Bluetooth for simple initial setup from a mobile via the UISP mobile application and a Gigabit LAN port with PoE support . The device supports both bridge and NAT mode and supports 1080 and 2160 MHz channel width in the 60GHz spectrum. The maximum bandwidth indicated by the manufacturer at 16 QAM is 2 Gbps (1 Gbps full duplex).

Key Features

• Compact dimensions - 424 × 424 × 166 mm
• 60GHz spectrum with low interference - 57 to 71 GHz
• Range up to 8 km
• 2Gbps Throughput (1 Gbps FD)
• Supports half channel width to achieve longer distance or better availability in bad weather
• Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz- depends on place of use
• Gigabit LAN port with passive PoE support (24 or 48 V DC)
• Built-in GPS
• Settings via web management and bluetooth - UISP mobile application

Package contents

• Device
• Fine Tuning Holder
• PoE power adapter 48 V/0.65 A
• Power cord
