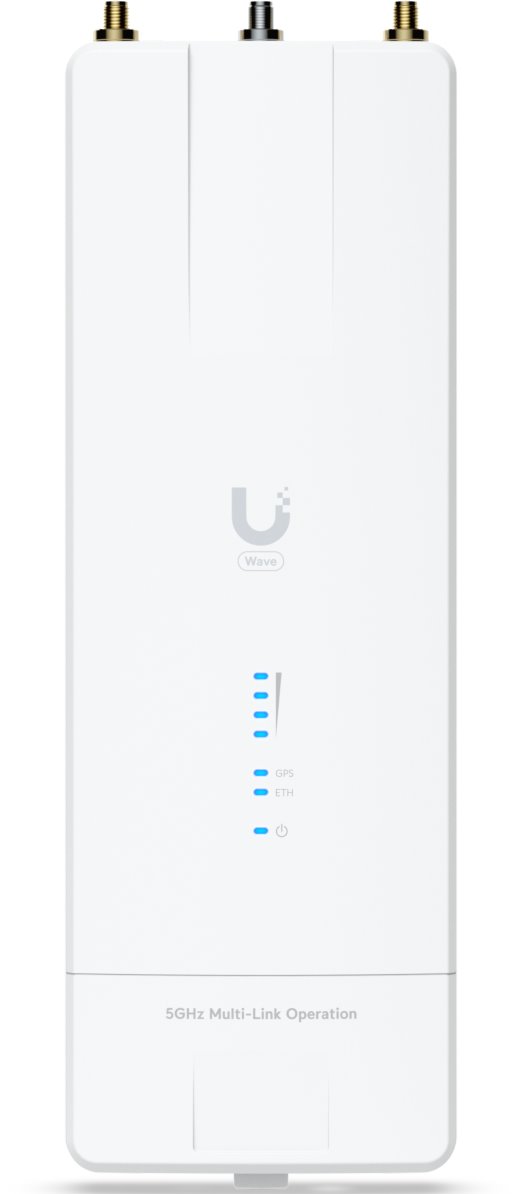

Ubiquiti Wave-MLO5, UISP Wave MLO5

High-performance 5 GHz Point-to-Point (PtP) device with Multi-Link Operation (MLO) technology for stable and fast wireless connectivity. With two built-in radio units based on Wi-Fi 7, it achieves a transmission capacity of over 5 Gbps and a maximum range of up to 100 km. It offers 10 Gigabit LAN with PoE, an SFP+ port, and integrated GPS for precise alignment. Bluetooth enables easy setup via the UISP mobile app. Support for wide channels (up to 240 MHz) ensures flexibility and maximum performance in demanding environments.

Key Features

• PtP operating mode - Bridge mode
• Dual Wi-Fi 7 - 5 GHz radios with Multi-Link Operation
• 5+ Gbps throughput
• Range of 100+ km
• Frequency bands: 5180 - 5320, 5500 - 5700, and 5745 - 5825 MHz
• Supported bandwidths - RADIO 1: 20, 40, 80, 160 MHz, RADIO 2: 20, 40, 80, 160, and 240 MHz
• Built-in GPS
• Modulation of up to 4096 QAM
• Dedicated radio for spectrum analysis
• (1) 10 Gigabit Ethernet
• (1) SFP+ port
• Power over PoE (22 - 27 V DC, 44 - 54 V DC)
• Configuration via web management and Bluetooth - UISP mobile app

Package Contents

• Device
• Magnetic GPS antenna
• 10 Gbps PoE power adapter 54 V / 0.56 A
• Power cable
• Metal zip tie (25 to 51 mm)
• Wall mount bracket
• Screws + wall plugs
