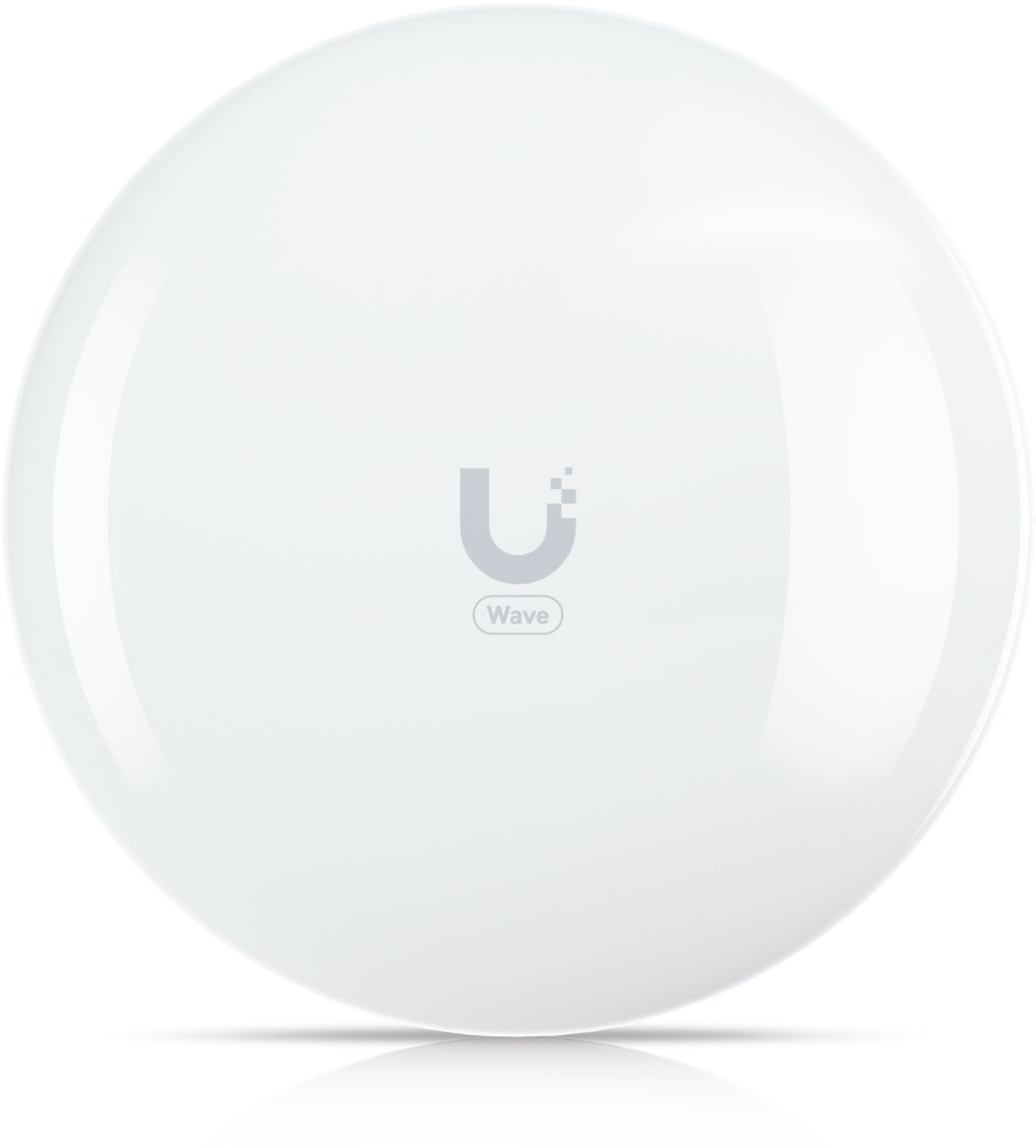

Ubiquiti Wave-Pico, UISP Wave Pico

The UISP Wave Pico is a 60 GHz PtP and PtMP device with a built-in 5 GHz backup (Wi-Fi 6 - 802.11ax) from Ubiquiti Networks with a range of up to 1.3 km and is ideal for internet service providers. The very compact and durable device is equipped with Bluetooth for simple initial setup from a mobile via UISP mobile application and a Gigabit LAN port with PoE support. The device supports both Bridge and Router mode (Router only in PtMP mode) and supports 1080 and 2160 MHz channel width in the 60GHz spectrum. The maximum bandwidth indicated by the manufacturer at 16 QAM is 2 Gbps (1 Gbps full duplex).

Key Features

• Compact dimensions - 152 × 152 × 56 mm
• 60 GHz spectrum with low interference - 57 to 71 GHz
• Range up to 1.3 km in PtMP (Wave AP) mode
• Range up to 0.9 km in PtP (Wave AP Pico) mode
• 2 Gbps Throughput (1 Gbps FD)
• Supports half channel width to achieve longer distance or better availability in bad weather
• Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz- depends on place of use
• Gigabit LAN port with support for passive PoE (48V DC)
• Settings via Web management and bluetooth - UISP mobile application

Package contents

• Device
• Simple articulated holder
• PoE power adapter 48 V/0.5 A
• Power cord
• Metal drawstring
• Aim tool
