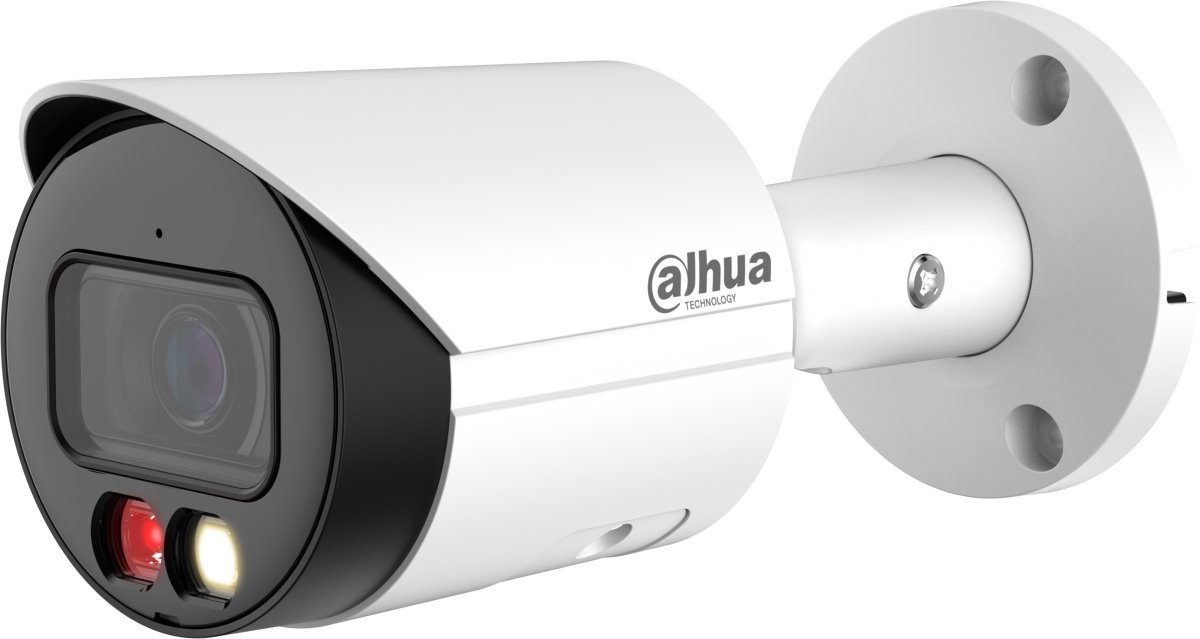

Dahua IP bullet camera IPC-HFW2249S-S-IL-0360B, 2Mpx, 3.6mm, Full-Color, SMD+

The IP camera from the WizSense 2 series in bullet design offers 2 Mpx resolution, color images even in poor light conditions (0.006 Lux), a fixed 3.6 mm lens, a wide field of view up to 88°, and a combined IR + LED illumination (Warm light) with a range of 30 meters. The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or the DMSS mobile application. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Full-color with combined illumination (IR + LED)
• Image sensor 1/2.8" CMOS, progressive scan
• 0.002 Lux @ (F1.6, Color) or 0.0002 Lux @ (F1.6, B/W)
• Resolution 2 Mpx (1920 x 1080 px @ 30 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone
• microSD card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• Ingress protection rating IP67
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - for people and vehicles, false alarm elimination from tree movement in the wind, animals, etc.

Video Analytic Functions

The camera integrates sophisticated video analytic tools that include features such as virtual fence, intrusion detection, and vehicle and person recognition. These advanced features are accessible via the camera's web interface.

Software and Applications

The device comes with the free SmartPSS Lite software for managing IP devices like NVRs and IP cameras. It facilitates easy device search, live viewing of channel images, recording selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is offered, which includes more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytic features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
