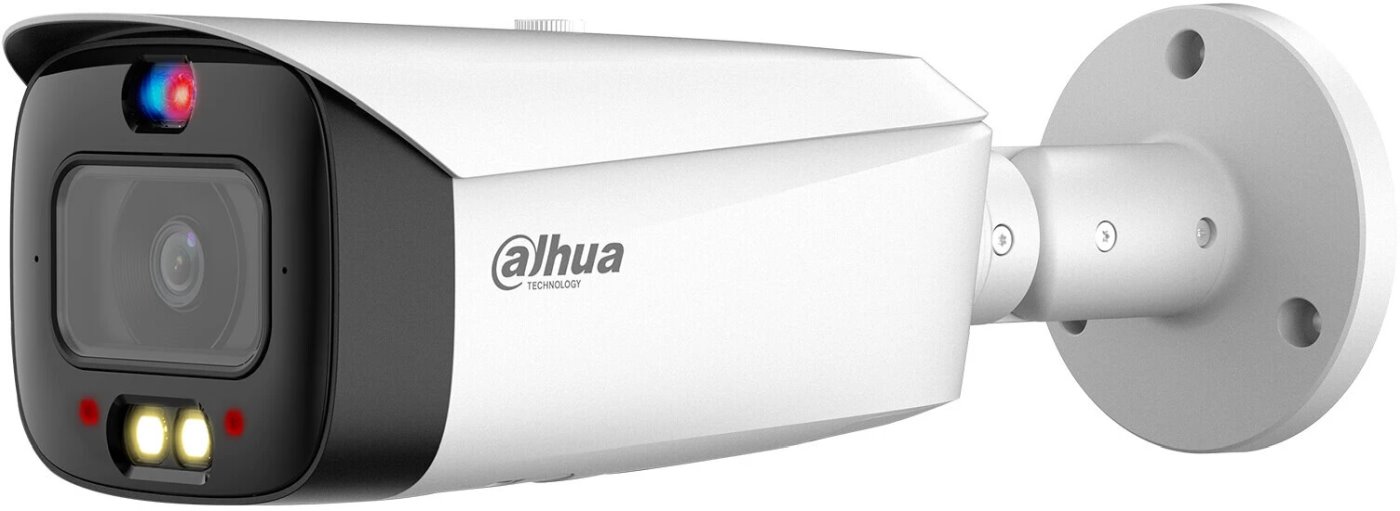

Dahua IP bullet camera IPC-HFW3549T1-AS-PV-0280B-S5, 5Mpx, 2.8mm, SMD4

The IP camera from the WizSense 3 series in a bullet design offers 5 Mpx resolution, a fixed 2.8 mm lens, a viewing angle of 97°, a combined dual IR + LED illuminator (Warm light) with a range of 30 meters (both IR and LED), a siren with a visual alarm, audio (microphone, speaker, 1x input, 1x output) and alarm (1x input, 1x output). The camera optimizes the data stream using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD 4.0) with enhanced motion detection and can be controlled via a web browser, NVR, or DMSS mobile application. It supports microSD cards with a capacity of up to 512 GB and is suitable for outdoor use thanks to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Range of dual illuminator 30m (both IR and LED)
• Sensitive image sensor 1/2.7" CMOS Starlight, progressive scan
• 0.003 Lux @ (F1.0, Color) or 0.0003 Lux @ (F1.0, B/W)
• Resolution 5 Mpx (2960 x 1688 px @ 20 fps) / 2688 x 1520 px @ 20 fps
• Image dynamic range - 120 dB WDR
• Integrated microphone + speaker + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light upon perimeter breach
• Slot for microSD memory card (max. 512 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 rating
• Quick Pick feature and AI SSA (AI Scene Self-adaptation)
• Support for SMD 4.0 motion detection (Smart Motion Detection), enhanced motion detection - of people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytics Functions

The camera incorporates sophisticated video analytics tools, which include features such as virtual fences, intrusion detection, and recognition of vehicles and people. These advanced functions are accessible through the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for the device, which is used to manage IP devices such as NVRs and IP cameras. It allows for easy device discovery, monitoring live image channels, recording selected channels according to set criteria, and playback of recordings. Additionally, the DSS Express application is also available, offering more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
