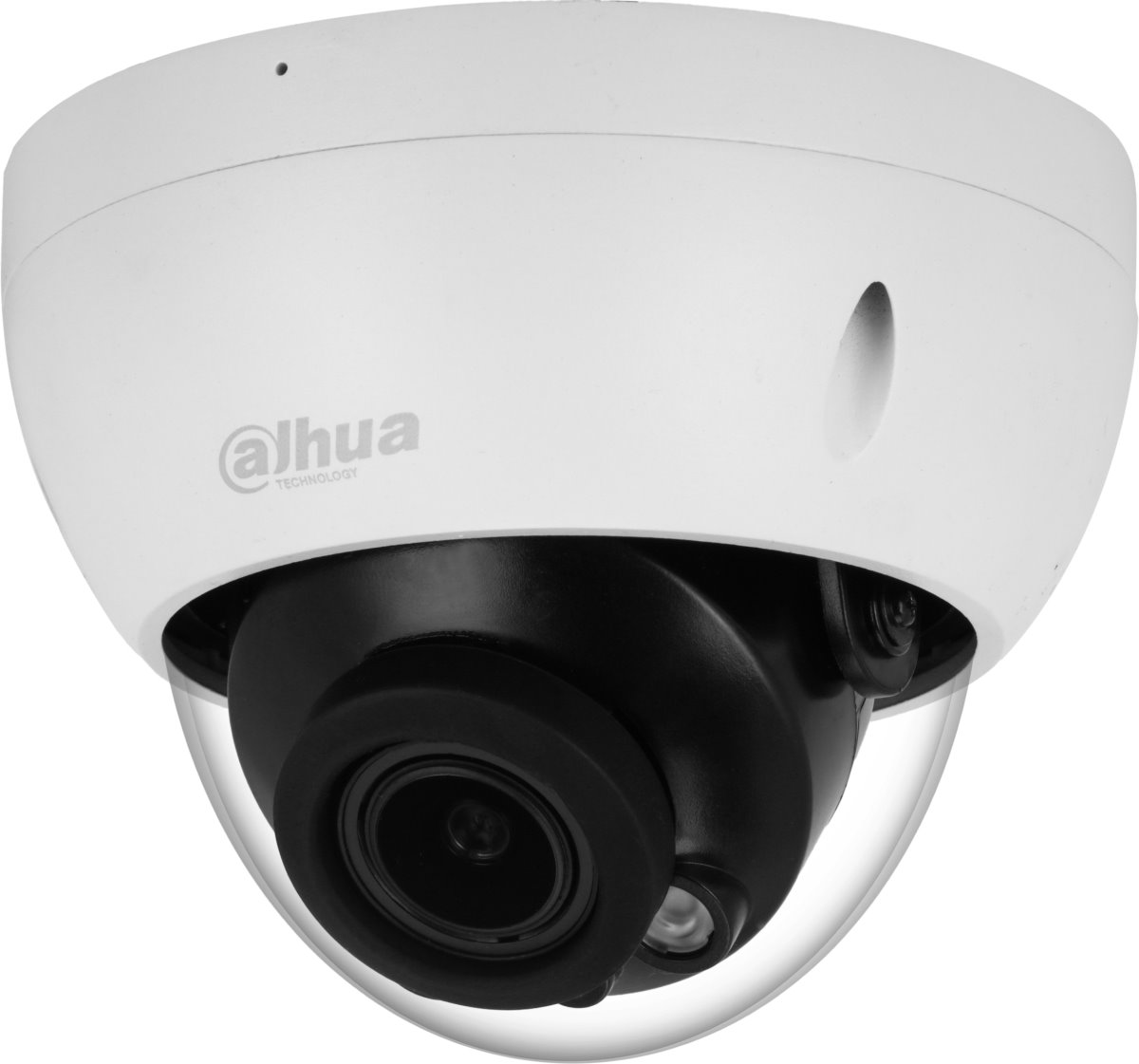

Dahua IP dome camera IPC-HDBW2841R-ZAS-27135, 8Mpx, 2.7-13.5mm, SMD+

The IP camera from the WizSense 2 series in a dome design offers resolution of 8 Mpx, a motorized varifocal lens of 2.7 to 13.5 mm, a field of view of 31 to 113°, IR illumination with a range of 40 meters, audio (microphone, 1x input, 1x output), and alarm (1x input, 1x output). The camera optimizes data transmission using smart codecs H.265+ and H.264+. It has intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or mobile application DMSS. It supports microSD cards up to a capacity of 256 GB, is suitable for outdoor use due to its IP67 certification, and has IK10 vandal-proof protection against impacts. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• IR illumination with a range of up to 40 m
• Image sensor 1/2.7" CMOS, progressive scan
• Motorized lens 2.7 to 13.5 mm (31 to 113°)
• 0.008 Lux @ (F1.5, Color) or 0.0008 Lux @ (F1.5, B/W)
• Resolution 8 Mpx (3840 x 2160 px @ 20 fps) / 2688 x 1520 px @ 30 fps
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• Slot for microSD memory card (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 rating + IK10 vandal-proof protection against impacts
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection - for people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytical Functions

The camera features sophisticated video analytical tools, including functions such as virtual fence, intrusion detection, and vehicle and person recognition. These advanced features are accessible through the camera's web interface.

Software and Applications

A software SmartPSS Lite is available for free, which serves to manage IP devices such as NVRs and IP cameras. It allows easy device search, live viewing of channel feeds, recording of selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is available, offering more features, free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
