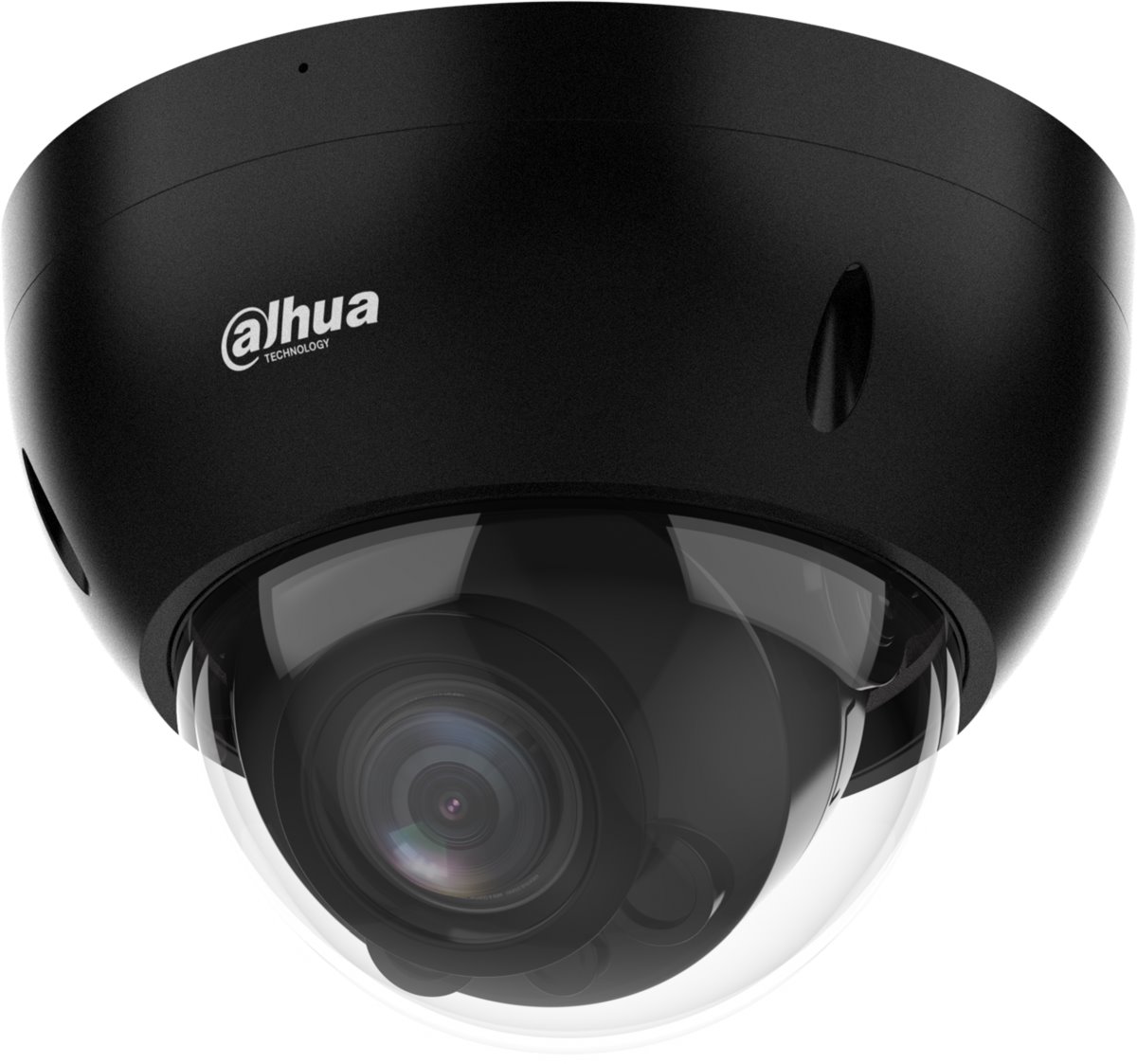

Dahua IP dome camera IPC-HDBW2841R-ZAS-27135-BLACK, 8Mpx, 2.7-13.5mm, SMD+, black

The IP camera from the WizSense 2 series in black dome design offers 8 Mpx resolution, a motorized varifocal lens of 2.7 to 13.5 mm, a field of view of 31 to 113°, IR illumination with a range of 40 meters, audio (microphone, 1x input, 1x output) and alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled via a web browser, NVR, or mobile application DMSS. It supports microSD cards up to 256 GB, is suitable for outdoor use thanks to its IP67 certification, and has IK10 vandal-proof protection against impacts. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• IR illumination with a range of up to 40 m
• Image sensor 1/2.7" CMOS, progressive scan
• Motorized lens 2.7 to 13.5 mm (31 to 113°)
• 0.008 Lux @ (F1.5, Color) or 0.0008 Lux @ (F1.5, B/W)
• Resolution 8 Mpx (3840 x 2160 px @ 20 fps) / 2688 x 1520 px @ 30 fps
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• MicroSD card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 rating + IK10 vandal-proof protection against impacts
• SMD+ motion detection support (Smart Motion Detection Plus), enhanced motion detection for persons and vehicles, suppression of false alarms from tree movements in the wind, animals, etc.

Video Analytical Functions

The camera has implemented sophisticated video analytical tools, which include functions such as virtual fences, intrusion detection, vehicle and person recognition. These advanced features are accessible through the camera's web interface.

Software and Applications

For the device, free software SmartPSS Lite is available for managing IP devices, such as NVRs and IP cameras. It allows easy device discovery, monitoring of live images from channels, recording selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is available, which offers more features, is free for up to 10 connected clients, and is built on client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
