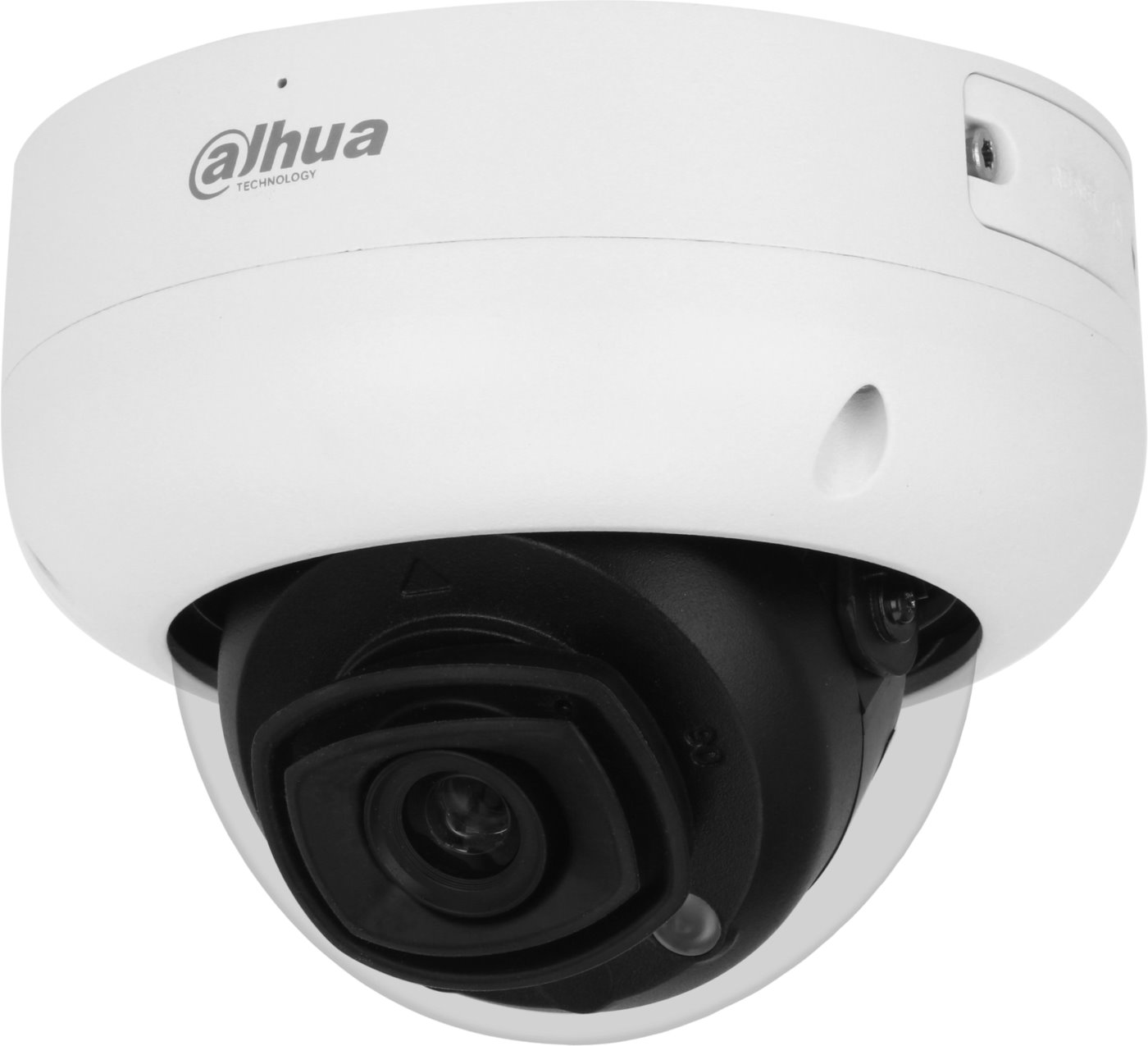

Dahua IP dome Profi camera IPC-HDBW5541R-ASE-0280B-S3, 5Mpx, 2.8mm, SMD3

The IP camera from the WizMind S series in dome version offers 5 Mpx resolution, a fixed 2.8 mm lens, a field of view 111°, IR illumination with a range of 50 meters, audio (microphone, 1x input, 1x output), and alarm (1x input, 1x output). The camera optimizes the data stream using smart codecs H.265+ and H.264+. It supports microSD cards up to a capacity of 512 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC, PoE (802.3af), or ePoE up to 800m.

Video Analysis and AI-Powered Image

It features intelligent video analysis (SMD 3.0) with support for virtual fencing, intrusion detection, people counting, scene change detection, motion detection, or face recognition, including attributes such as age, gender, facial expressions, whether the person wears glasses, has a mustache, beard, etc. These advanced functions are accessible via the camera's web interface. Thanks to AI ISP technology, the camera can easily adapt to scenes and provide high-quality footage that can display fine details of the observed objects.

Key Features

• IR illumination range 50m
• Sensitive 1/2.7" CMOS sensor, progressive scan
• 0.0009 Lux @ (F1.6, Color) or 0.0005 Lux @ (F1.6, B/W)
• 5 Mpx resolution (2960 x 1668 px @ 30 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• MicroSD card slot (max. 512 GB)
• Power 12 V DC, 802.3af PoE or ePoE (up to 800m)
• IP67 rating + IK10 anti-vandal impact protection
• AI SSA (AI Scene Self-adaptation)
• Support for SMD 3.0 (Smart Motion Detection) - enhanced motion detection for people and vehicles, eliminates false alarms from tree movement in the wind, animals, etc.

Software and Applications

A free software SmartPSS Lite is available for managing IP devices such as NVRs and IP cameras. It allows easy device search, live channel monitoring, recording of selected channels according to specified criteria, and playback of recordings. Additionally, there is an application DSS Express, which offers more features, is free for up to 10 connected clients, and is based on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
