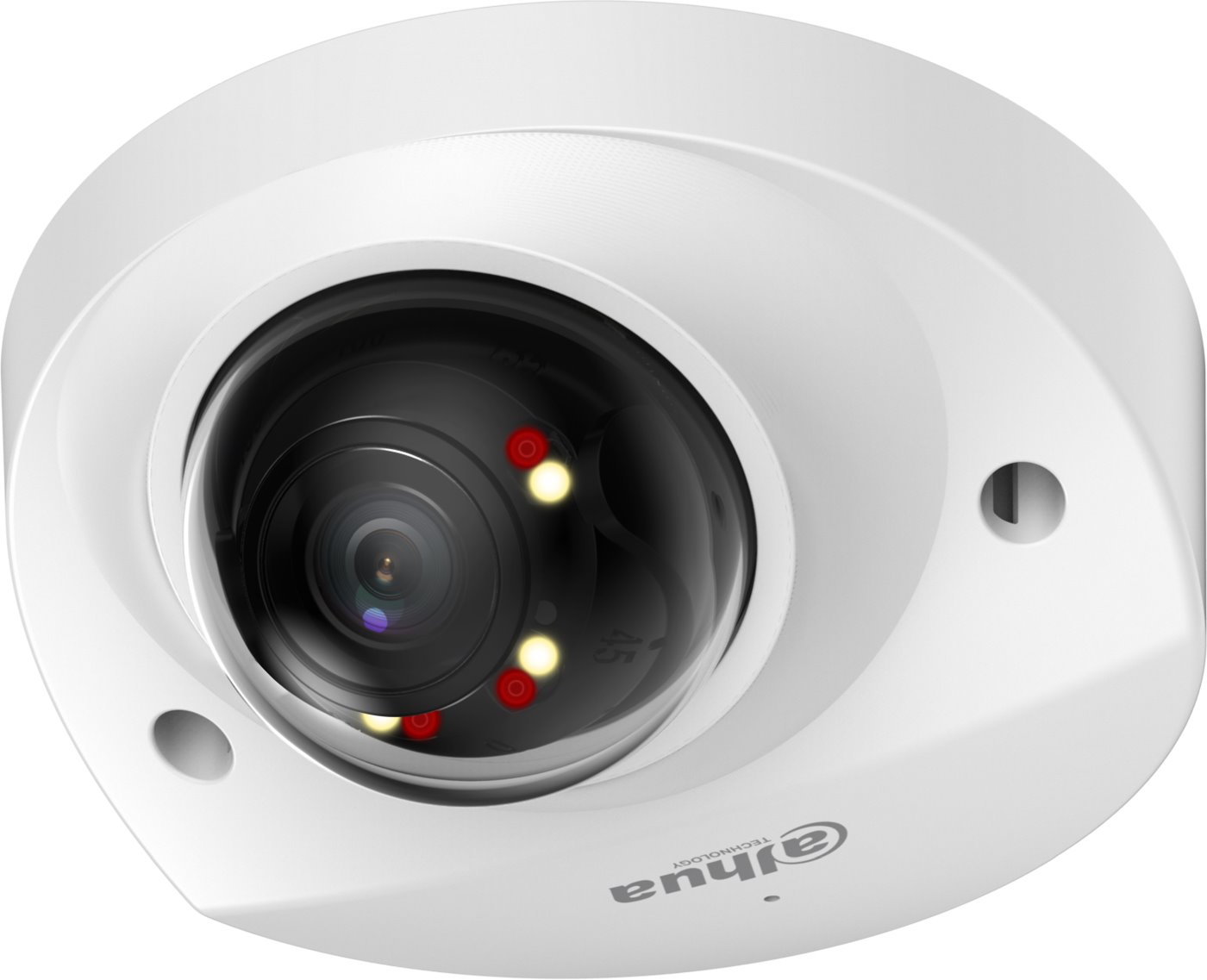

Dahua IP mini dome camera IPC-HDBW2449F-AS-IL-0280B, 4Mpx, 2.8mm, Full-Color, SMD+

The IP camera from the WizSense 2 series in mini dome design offers 4 Mpx resolution, color image even in poor lighting conditions (0.006 Lux), a fixed 2.8 mm lens, a field of view of 101°, and a combined dual IR + LED illuminator (Warm light) with a range of 30 meters (LED) and 30 meters (IR), audio (microphone, 1x input, 1x output) and alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD+) and can be controlled through a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB capacity, is suitable for outdoor use due to IP67 certification, and has IK10 vandal-proof impact protection. Power supply can be via 12 V DC or PoE (802.3af).

Key Features

• Full-color with combined illumination (IR + LED)
• Dual illuminator range 30m (LED) and 30m (IR)
• Imaging chip 1/2.9" CMOS, progressive scan
• 0.006 Lux @ (F1.6, Color) or 0.0006 Lux @ (F1.6, B/W)
• Resolution 4 Mpx (2688 x 1520 px @ 20 fps) / 2560 x 1440 px @ 30 fps
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• Slot for microSD memory card (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection grade + IK10 vandal-proof impact protection
• Support for SMD+ motion detection (Smart Motion Detection Plus), enhanced motion detection for people and vehicles, elimination of false alarms from moving trees in the wind, animals, etc.

Video Analytical Functions

The camera is equipped with sophisticated video analytical tools, which include features such as virtual fence, intrusion detection, and vehicle and person recognition. These advanced features are accessible via the camera's web interface.

Software and Applications

For the device, free software SmartPSS Lite is available for managing IP devices like NVRs and IP cameras. It allows easy device searching, live monitoring of channel images, recording selected channels based on specified criteria, and playback of recordings. Additionally, there is also the DSS Express app, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical features. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
