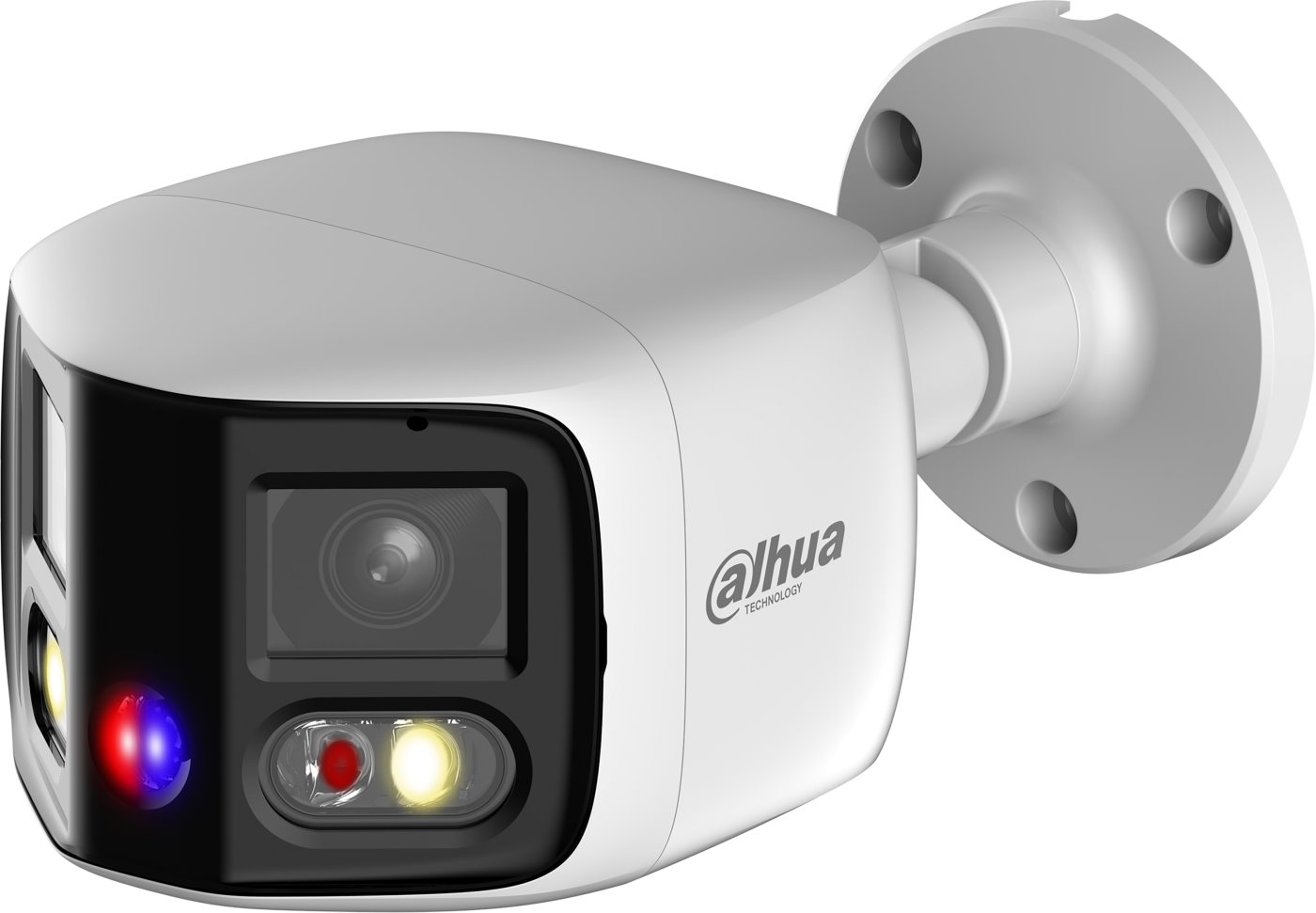

Dahua IP panoramatic bullet camera IPC-PFW3849S-A180-E2-AS-PV-0280B, 2x 4Mpx, 2.8mm, SMD4

The panoramic IP camera from the WizSense 3 series in bullet design offers 8 Mpx resolution (2x 4 Mpx), a fixed 2.8 mm lens, a wide field of view of 180°, a combined dual IR + LED illumination (Warm light) with a range of 20 meters (LED) and 25 meters (IR), a siren with a light alarm, audio (microphone, speaker, 1x input, 1x output), and an alarm (1x input, 1x output). The camera optimizes the data stream using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD 4.0) with improved motion detection and can be controlled via a web browser, NVR, or the DMSS mobile application. It supports microSD cards with a capacity of up to 256 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Range of dual illumination 20 m (LED) and 25 m (IR)
• Dual sensitive image sensor 1/2.7" CMOS Starlight, progressive scan
• 0.005 Lux @ (F1.4, Color) or 0.0005 Lux @ (F1.4, B/W)
• Resolution 8 Mpx (4096 x 1860 px @ 20 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone + speaker + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light on perimeter breach
• Slot for microSD memory card (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• Protection rating IP67
• Support for ePTZ and Quick Pick functions
• Support for SMD 4.0 motion detection (Smart Motion Detection), improved motion detection - of people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytical Functions

The camera includes sophisticated video analytical tools that encompass functions such as virtual fences, intrusion detection, and vehicle and person recognition. These advanced functions are accessible via the camera's web interface.

Software and Applications

Free software SmartPSS Lite is available for managing IP devices such as NVRs and IP cameras. It allows for easy device discovery, live viewing of channel feeds, recording selected channels according to specified criteria, and playback of recordings. Additionally, the DSS Express application is also available, offering more features, free for up to 10 connected clients, and built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical features. For mobile access, the DMSS application is available for download from official app stores (Google Play/Apple App Store).
