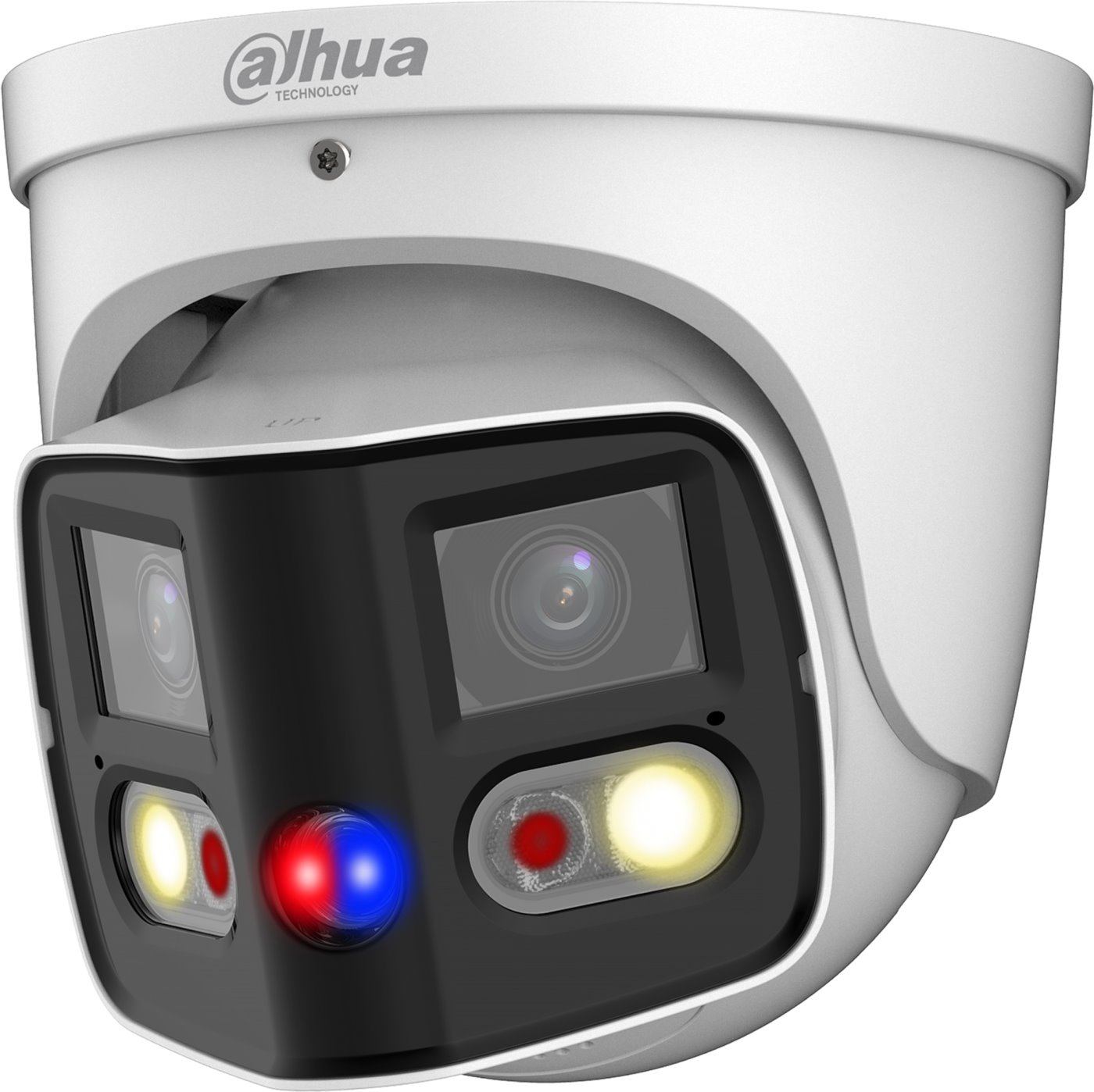

Dahua IP panoramatic turret camera IPC-HFW3549T1-AS-PV-0360B-S4, 2x 4Mpx, 2.8mm, SMD4

The panoramic IP camera from the WizSense 3 series in turret design offers 8 Mpx resolution (2x 4 Mpx), a fixed 2.8 mm lens, a wide field of view 180°, a combined dual IR + LED illumination (Warm light) with a range of 20 meters (LED) and 25 meters (IR), a siren with a light alarm, audio (microphone, speaker, 1x input, 1x output), and alarm (1x input, 1x output). The camera optimizes the data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD 4.0) with enhanced motion detection and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 256 GB and is suitable for outdoor use thanks to its IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Dual illumination range of 20 m (LED) and 25 m (IR)
• Dual-sensitive sensor chip 1/2.7" CMOS Starlight, progressive scan
• 0.005 Lux @ (F1.4, Color) or 0.0005 Lux @ (F1.4, B/W)
• 8 Mpx resolution (4096 x 1860 px @ 20 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone + speaker + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light during perimeter breach
• microSD memory card slot (max. 256 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Support for ePTZ and Quick Pick functions
• Support for SMD 4.0 motion detection (Smart Motion Detection), enhanced motion detection - people and vehicles, elimination of false alarms from tree movement in the wind, animals, etc.

Video Analytical Functions

The camera has sophisticated video analytical tools implemented, including functions such as virtual fence, intrusion detection, vehicle and person recognition. These advanced functions are accessible via the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for the device, which serves to manage IP devices such as NVRs and IP cameras. It allows easy device discovery, live viewing of channel streams, recording of selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express app is available, which offers more features, is free for up to 10 connected clients, and is built on a client-server architecture. The more advanced DSS Pro is already licensed and offers many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
