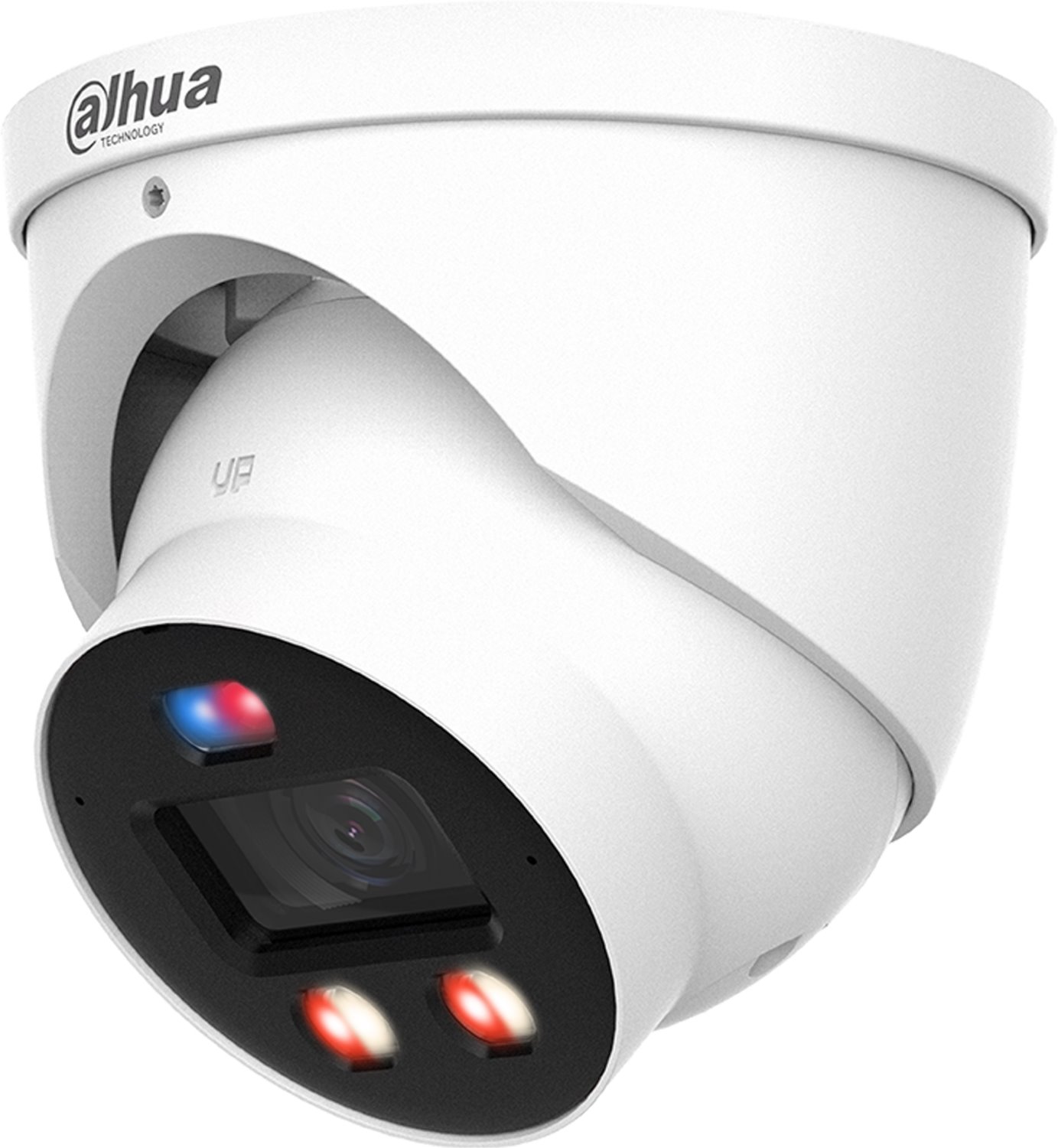

Dahua IP turret camera IPC-HDW3649H-AS-PV-0280B-PRO, 6Mpx, 2.8mm, WizColor, SMD4

The IP camera from the WizSense 3 series in turret design offers 6 Mpx resolution, a fixed 2.8 mm lens, a field of view of 109°, a combined dual IR + LED illuminator (Warm light) with a range of 30 meters (IR and LED), a siren with a light alarm, audio (microphone, speaker, 1x input, 1x output), and an alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It features intelligent video analytics (SMD 4.0) with enhanced motion detection and can be controlled via a web browser, NVR, or the DMSS mobile app. It supports microSD cards up to 512 GB and is suitable for outdoor use due to IP67 certification. Power can be supplied via 12 V DC or PoE (802.3af).

Key Features

• Range of dual illuminator 30m (IR and LED)
• Sensitive 1/1.8" CMOS Starlight sensor, progressive scan
• 0.0005 Lux @ (F1.0, Color) or 0.0004 Lux @ (F1.0, B/W)
• Resolution 6 Mpx (3288 x 1850 px @ 30 fps)
• Image dynamics - 120 dB WDR
• Integrated microphone + speaker + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light upon perimeter breach
• Slot for microSD memory card (max. 512 GB)
• Power supply 12 V DC or 802.3af PoE
• IP67 protection rating
• Quick Pick and AI SSA (AI Scene Self-adaptation) features
• Support for SMD 4.0 motion detection (Smart Motion Detection), enhanced detection of people and vehicles, elimination of false alarms caused by moving trees in the wind, animals, etc.

Video Analytics Features

The camera is equipped with sophisticated video analytics tools, which include functions such as virtual fence, intrusion detection, and recognition of vehicles and individuals. These advanced features are accessible through the camera's web interface.

Software and Applications

A free software SmartPSS Lite is available for managing IP devices like NVRs and IP cameras. It allows for easy device search, live monitoring of channel images, recording selected channels based on specified criteria, and playback of recordings. Additionally, there is also the DSS Express app, which offers more features, is free for up to 10 connected clients, and is based on a client-server architecture. The advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
