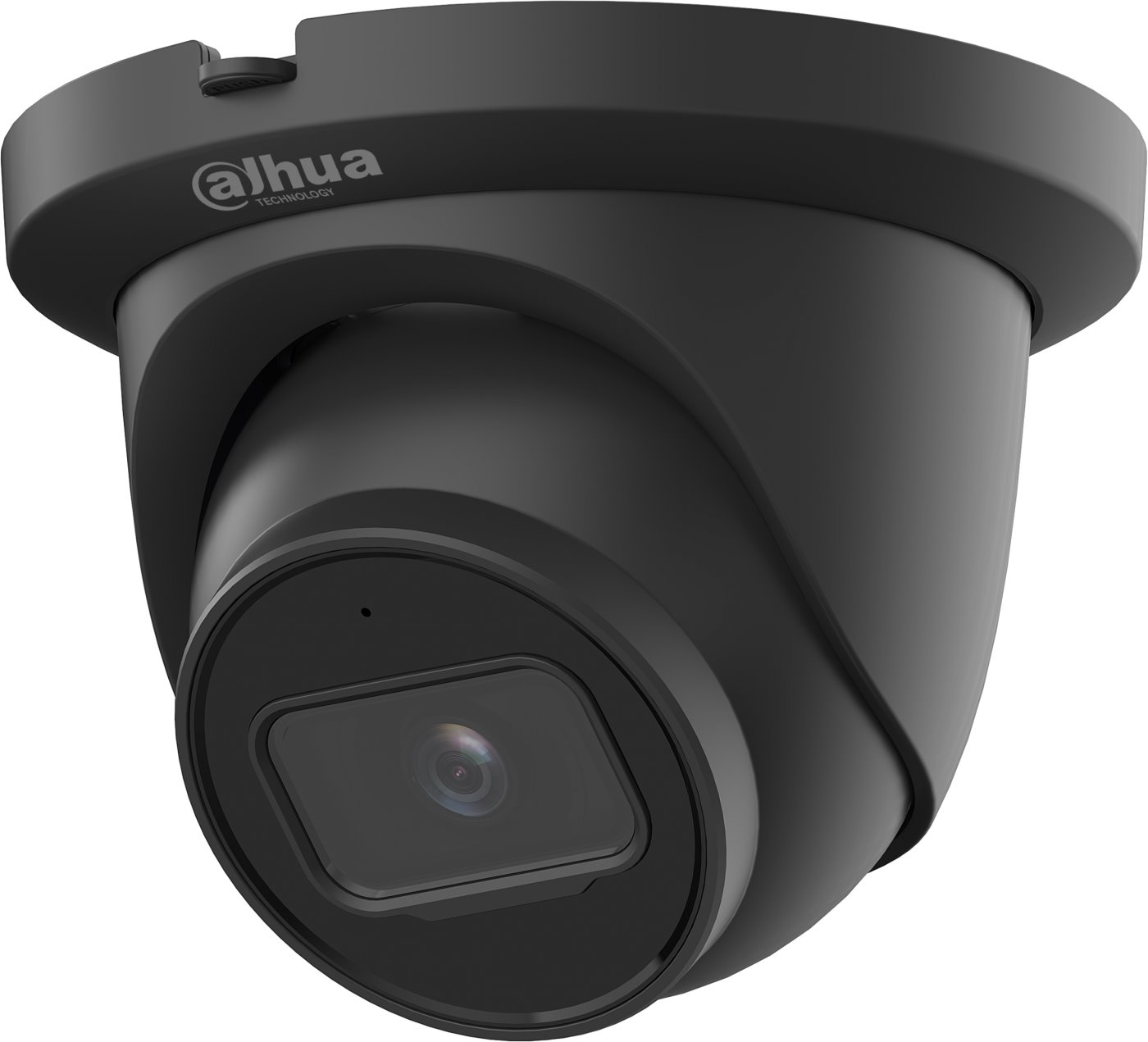

Dahua IP turret Profi camera IPC-HDW5541TM-ASE-0280B-S3-BLACK, 5Mpx, 2.8mm, SMD3, Black

The IP camera from the WizMind S series in black turret design offers 5 Mpx resolution, a fixed 2.8 mm lens, a field of view of 111°, IR illumination with a range of 50 meters, audio (microphone, 1x input, 1x output) and alarm (1x input, 1x output). The camera optimizes data flow using smart codecs H.265+ and H.264+. It supports microSD cards up to 512 GB and is suitable for outdoor use due to its IP67 certification. Power can be supplied via 12 V DC, PoE (802.3af), or ePoE up to 800m.

Video Analysis and AI-Powered Image

It features intelligent video analysis (SMD 3.0) with support for virtual fences, intrusion detection, person counting, scene change detection, motion detection, and face recognition including attributes such as age, gender, facial expressions, whether the person wears glasses, mustache, beard, etc. These advanced features are accessible via the camera's web interface. Thanks to AI ISP technology, the camera can easily adapt to scenes and provides high-quality footage that can display fine details of monitored objects.

Key Features

• IR illumination range 50m
• Sensitive 1/2.7" CMOS Starlight sensor, progressive scan
• 0.003 Lux @ (F1.0, Color) or 0.0003 Lux @ (F1.0, B/W)
• 5 Mpx resolution (2880 x 1620 px @ 20 fps) / 2688 x 1520 px @ 20 fps
• Image dynamics - 120 dB WDR
• Integrated microphone + 1x input + 1x output
• Alarm 1x input + 1x output
• Active siren and light upon perimeter breach
• MicroSD card slot (max. 512 GB)
• Power supply 12 V DC, 802.3af PoE or ePoE (up to 800m)
• IP67 protection rating
• Quick Pick feature and AI SSA (AI Scene Self-adaptation)
• Support for SMD 3.0 (Smart Motion Detection) - enhanced detection of movement, or people and vehicles, eliminates false alarms from tree movement in the wind, animals, etc.

Software and Applications

A free software called SmartPSS Lite is available for managing IP devices such as NVRs and IP cameras. It allows easy device searching, live monitoring of channel images, recording selected channels based on specified criteria, and playback of recordings. Additionally, the DSS Express application is available, offering more features; it is free for up to 10 connected clients and is built on a client-server architecture. The more advanced DSS Pro is licensed and offers many more analytical functions. For mobile access, the DMSS app is available for download from official app stores (Google Play/Apple App Store).
