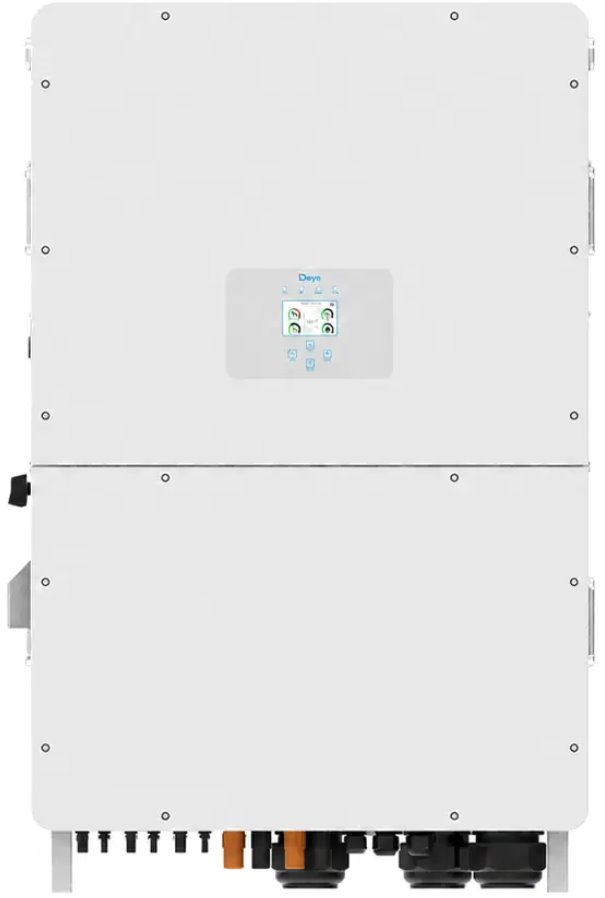

DEYE hybrid inverter 125 kW, 3 phase, HV

The most powerful hybrid 3-phase inverter for photovoltaic systems designed for high-voltage batteries with a voltage of 160 to 1000 V, which ensures higher system efficiency due to lower waste heat. This inverter can handle 10 trackers and a total of up to 20 strings in a 2+2+2+2+2+2+2+2+2+2 configuration with a maximum power of 125 kW and scalability of up to 10 parallel on-grid and off-grid systems.

Thanks to the smart monitoring platform, the complete range of Deye inverters supports remote shutdown immediately after an incident. Setting parameters and updating FW remotely facilitates the operation of the PV system.

Key Features

• 6 MPP trackers, up to 12 strings in a 2+2+2+2+2+2+2+2+2+2 configuration
• Current limit of trackers: 42 + 42 + 42 + 42 + 42 + 42 + 42 + 42 + 42 + 42 A
• Voltage range MPPT: 150 to 850 V
• Support for multiple batteries in parallel
• Max. efficiency up to 98.7 %
• High-voltage batteries (160 to 1000 V), higher efficiency
• Communication interface - RS-485, RS-232, CAN, and Wi-Fi
• Type II DC/AC SPD
• Max. charging/discharging current is 160 A (in a configuration of 100 + 100)
• 6 time slots for charging/discharging the battery
• Support for energy storage from a diesel generator

10-Year Warranty

During the first five years, the warranty covers all parts including labor fees. During the second five-year period, the warranty applies to all parts except for the LCD, fan, and labor fees. Detailed information on the 10-year warranty from DEYE can be found here.
