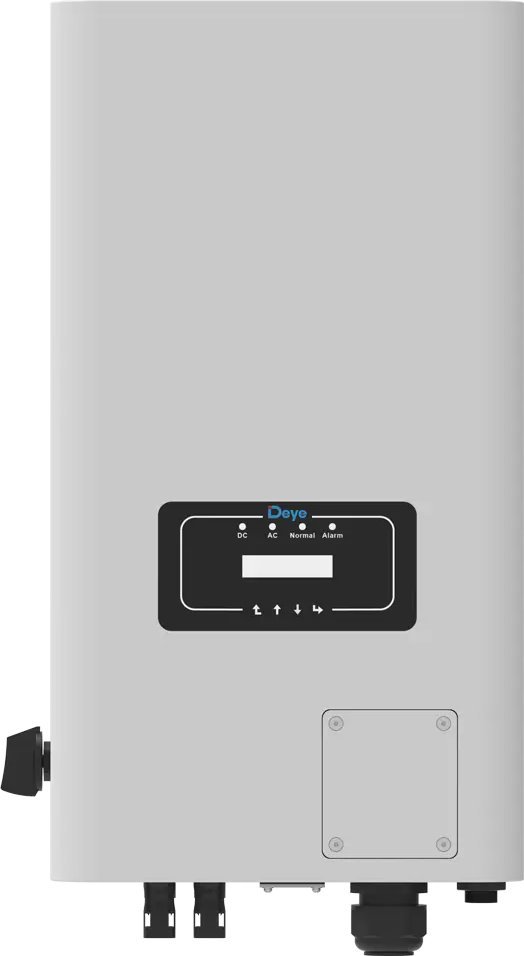

DEYE inverter 10kW, 3 phase, G06

This series of inverters is specially designed for three-phase PV systems, covering up to 10 kW. With a compact design, it is easy to install and operate. It supports a wide AC output voltage to ensure longer operating times.

Thanks to the smart monitoring platform, the full range of Deye inverters supports remote shutdown immediately in case of an incident. Parameter settings and FW updates can be performed remotely, making the operation of PV plants easier.

This inverter has successfully passed PPDS certification in categories A1 and A2 on 18. 06. 2026 at the clean energy laboratory, EG.D in České Budějovice. Based on these certifications, it can be permanently connected to the distribution grid in the territory of the Czech Republic according to the regulations effective from 1. 1. 2025.

Key Features

• 2 MPP trackers, a total of max. 2 strings in a 1+1 configuration
• Current limit of trackers: 20+20 A
• MPPT voltage range: 120 to 1000 V
• Max. efficiency up to 98.5 %
• Zero export application, VSG application
• Intelligent string monitoring (optional)
• Wide output voltage range
• Communication interfaces - RS-485, RS-232, and Wi-Fi
• Type II DC/AC SPD
• Anti-PID function (optional)
