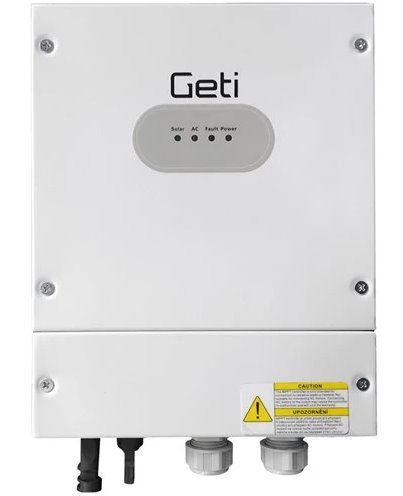

GETI Regulator GWH01 for photovoltaic water heating, 4kW

The GETI GWH01 4000W MPPT inverter enables the direct use of photovoltaic panel systems to power resistance heating devices such as electric boilers, heaters, heating mats, water heating, etc. The inverter is additionally also equipped with an AC input, which allows connecting the inverter to the mains voltage and heating the water even when the sunlight is insufficient for heating.

The system is simple, it only requires the connection of the appropriate number of photovoltaic panels of max. power 4000W with operating voltage 160 ~ 350V DC, mains voltage 230C AC and connection with a resistive load, e.g. heating coil, electric boiler, electric radiator or floor heating.

The direct current generated in the panels, which cannot be fed directly to the heating devices, is converted into alternating current in the inverter, which can be used to power the heating devices. The inverter has a priority input from the photovoltaic panels and when this voltage drops below 120V, the water heating will be powered from the mains voltage 230V AC.

Key Features

• MPPT regulation technology (finding the highest power point)
• Efficiency >99%
• Processor Controlled Operation (DSP)
• High input voltage range (up to 350V DC)
• Backup input: mains 230V AC
• Low own energy consumption
• Passive cooling for low working temperatures
• Durable construction with IP65 protection
• Protection against overheating and short circuit at the input
• Input connection of PV panels: MC4 connectors
