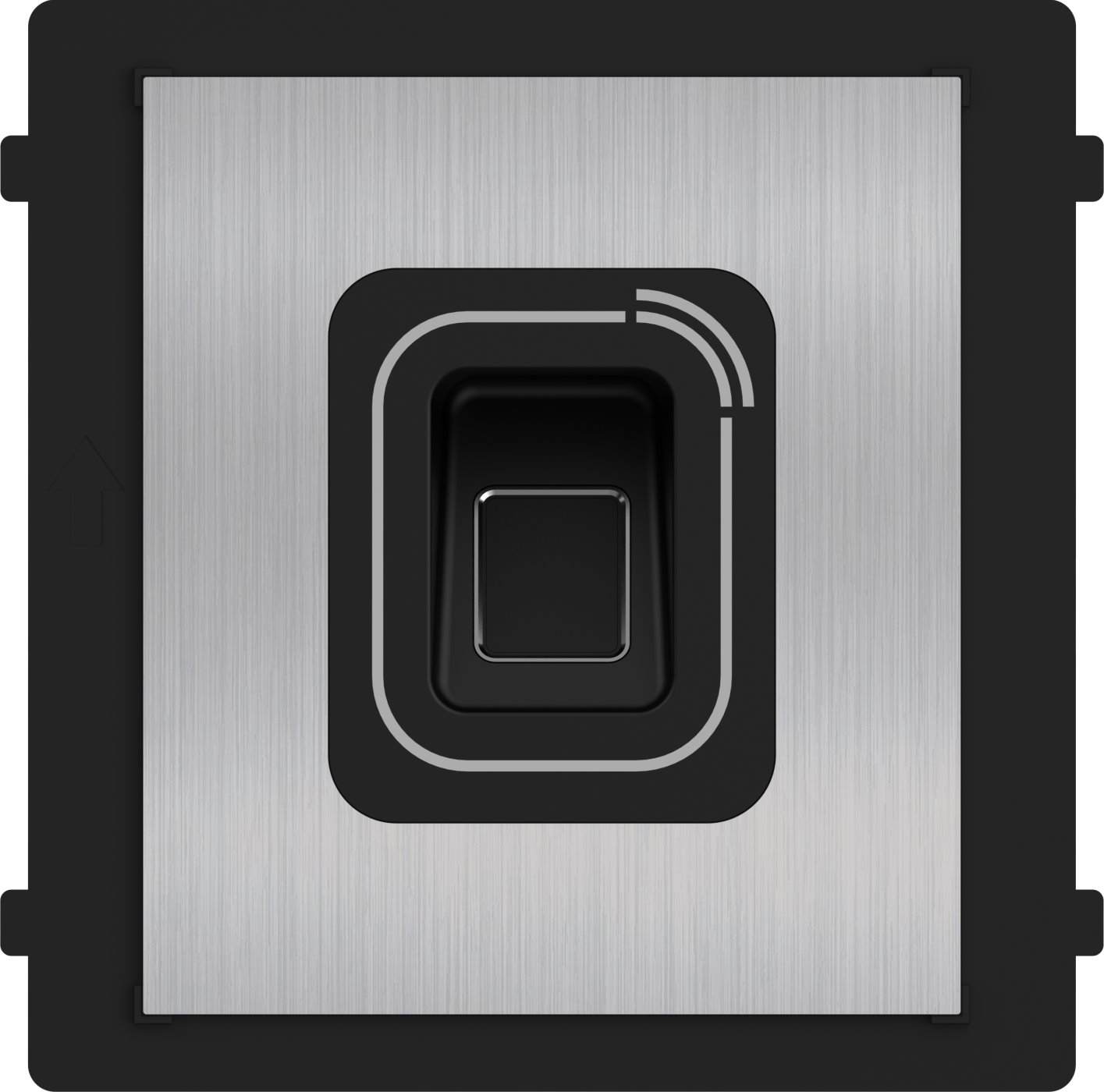

Hikvision DS-KD-MFB/S Fingerprint and Mifare card reader module, stainless steel

The contactless fingerprint reader and M1/Mifare Desfire cards provide a high level of security for Hikvision modular door stations, whether in homes, businesses, or commercial properties. It allows for quick and convenient door opening using biometrics or a chip card, with a capacity of up to 1 000 fingerprints and 6000 cards, offering sufficient space even for extensive systems. Its compatibility with IP, 2-wire IP, and 2-wire HD platforms allows the module to be easily integrated into various types of installations, while the 8-position DIP switch supports flexible settings.

Durable design and easy installation

Robust construction with IP65 protection ensures reliable operation even in demanding outdoor conditions, resisting dust, rain, and temperature changes. The option for surface or recessed mounting facilitates integration into both modern and traditional entry systems, and powering through the main module simplifies the installation. Support for reading RFID cards at a frequency of 13,56 MHz guarantees high security and quick response during identification. Compact dimensions of 100 × 100 × 34 mm also allow for elegant and discreet placement in any entrance area.

Key features

• 1 000 fingerprints + 6000 card capacity
• Contactless M1/Desfire reader and biometric authentication
• Compatibility with IP, 2-wire IP, and 2-wire HD stations
• 8-position DIP switch for flexible settings
• Durable design IP65
• Surface and recessed mounting
• RFID technology 13,56 MHz
• Stainless steel design
