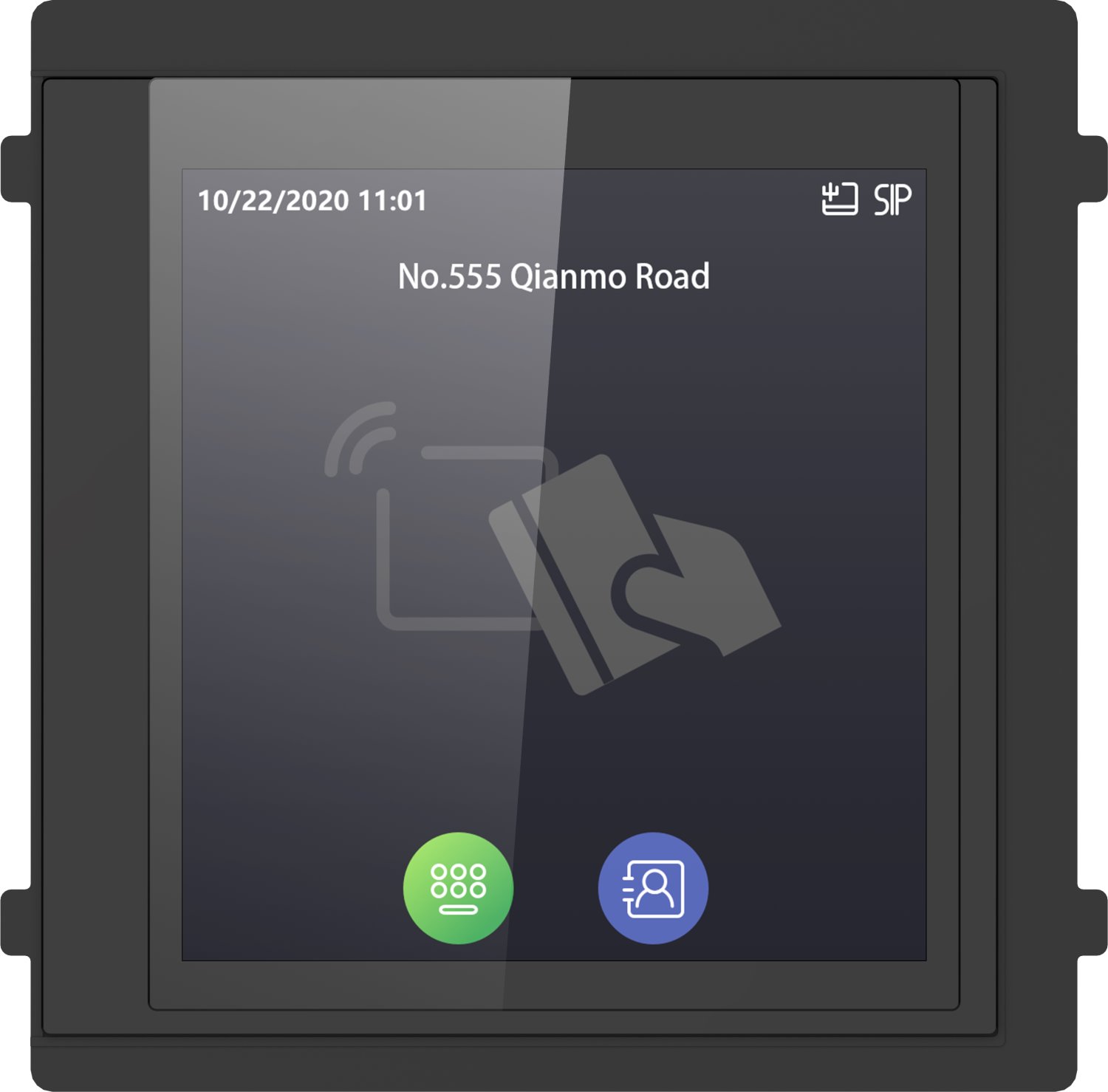

Hikvision DS-KD-TDE Touch display module with card reader for IP intercom, EM 125 kHz

The 3-in-1 touch module brings a combination of practical functions for modern modular door stations. It features a 4" IPS display with a resolution of 480 × 480 px that enables intuitive control, displays dialed numbers, and a contact list. The integrated EM 125 kHz RFID reader and keypad provide flexible unlocking options – either with a card or by entering a PIN code. The module runs on the Linux operating system with 128 MB RAM and 32 MB ROM, ensuring stable and fast operation even under demanding conditions.

Durability, versatility, and easy installation

The device is designed for reliable operation in various conditions with IP65 protection and IK08 resilience, suitable for both outdoor and indoor use. It operates in a temperature range of -20 °C to +60 °C and withstands humidity of 10–95%. Thanks to the option for surface and flush mounting, it easily adapts to any environment. The module supports multiple languages and allows the display of a logo or image according to user requirements. The built-in audio output (buzzer) provides clear signaling for system control. This device is the ideal choice for a flexible, secure, and elegant access system.

Key features

• 4" IPS touch display with a resolution of 480 × 480 px
• Integrated EM 125 kHz RFID reader
• Keypad for unlocking the lock with a PIN code
• Linux operating system with 128 MB RAM and 32 MB ROM
• IP65 protection and IK08 resilience for outdoor and indoor use
• Surface and flush mounting
• Support for multiple languages and option to display a logo or image
• Audio output (buzzer) for signaling
• Operating temperature -20 to +60 °C and humidity 10–95 %
