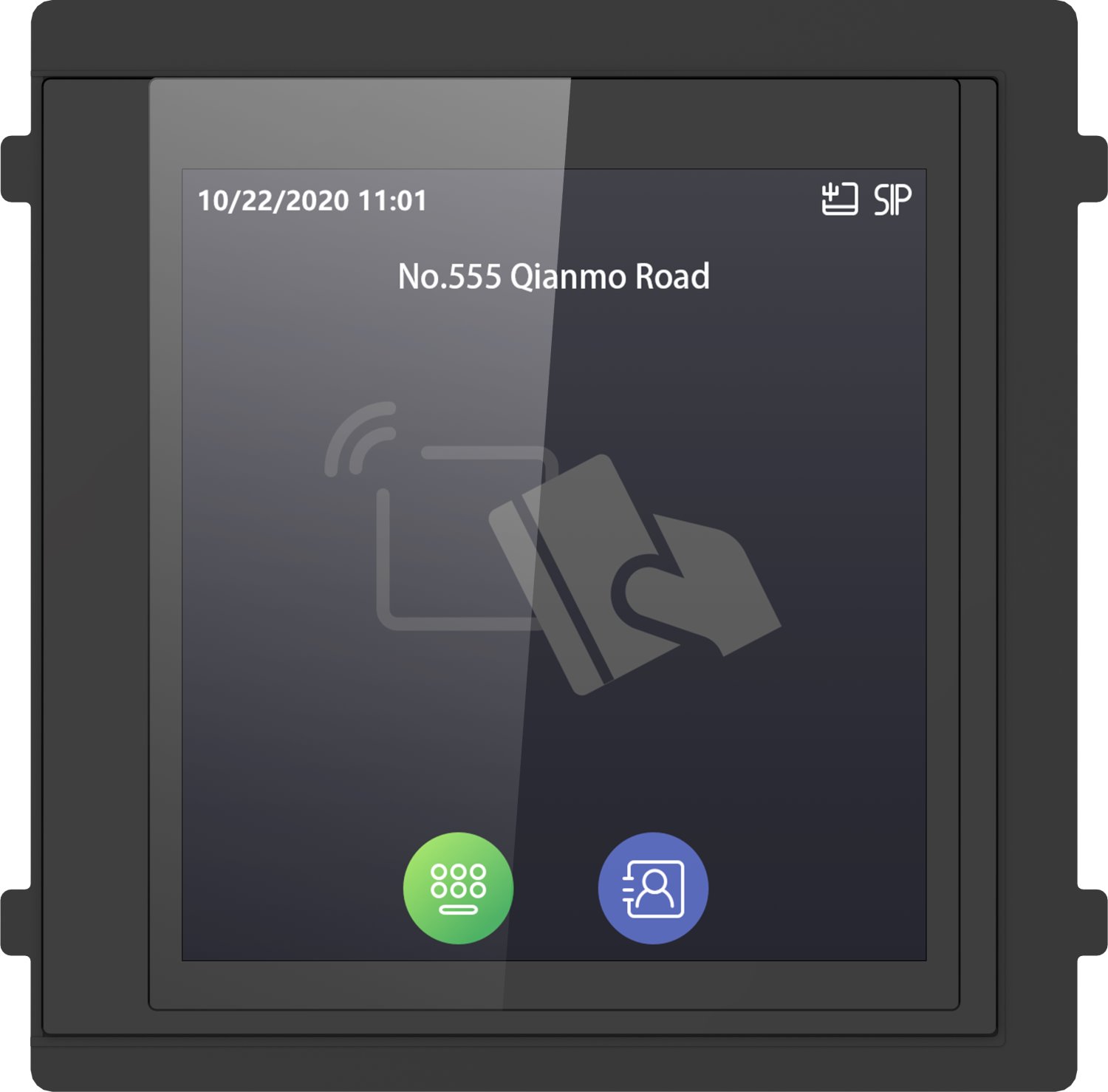

Hikvision DS-KD-TDM Touch display module with card reader for IP intercom, Mifare 13.56 MHz

The 3-in-1 touch module offers a combination of practical functions for modern modular door stations. It features a 4" IPS display with a resolution of 480 × 480 px, enabling intuitive control, display of dialed numbers, and contact lists. The integrated Mifare 13.56 MHz RFID reader and keypad provide flexible lock unlocking options – either with a card or by entering a PIN code. The module runs on a Linux operating system with 128 MB RAM and 32 MB ROM, ensuring stable and fast operation even under demanding conditions.

Durability, versatility, and easy installation

The device is designed for reliable operation in various conditions with IP65 housing and IK08 durability, suitable for both outdoor and indoor use. It operates in temperature ranges from -20 °C to +60 °C and handles humidity from 10–95%. Thanks to the option for surface or flush mounting, it easily adapts to any environment. The module supports multiple languages and allows displaying a logo or image according to user requirements. The built-in audio output (buzzer) provides clear signaling for system control. This device is an ideal choice for a flexible, secure, and elegant access system.

Key features

• 4" IPS touch display with a resolution of 480 × 480 px
• Integrated Mifare 13.56 MHz RFID reader
• Keypad for unlocking the lock with a PIN code
• Linux operating system with 128 MB RAM and 32 MB ROM
• IP65 housing and IK08 durability for outdoor and indoor use
• Surface and flush mounting options
• Support for multiple languages and the option to display a logo or image
• Audio output (buzzer) for signaling
• Operating temperature -20 to +60 °C and humidity 10–95%
