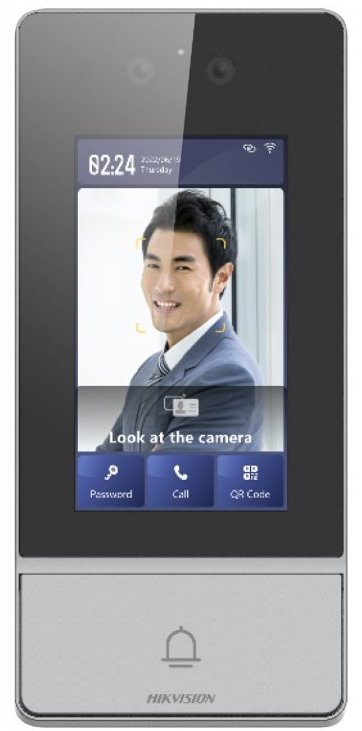

Hikvision DS-KV9503-WBE1, IP Intercom with Face Recognition, Mifare Reader, and WiFi

The IP door intercom with an elegant industrial design combines modern technology with practical functions for maximum comfort and security. The large 4.3" touchscreen IPS display with a resolution of 800 × 480 px allows for easy and intuitive operation, while the physical button provides quick access for direct calling. The device supports multiple authentication methods – from RFID reader Mifare 13.56 MHz to authorization using QR codes, making it a universal solution for family houses, residential, and commercial properties.

Advanced security and communication technology

A pair of 2Mpx HD IR cameras with WDR technology ensures sharp images even in varying lighting conditions, and face recognition with a capacity of up to 10 000 stored images enhances the level of access control. Thanks to two-way voice communication, a built-in microphone, and a speaker with noise and echo cancellation, clear and natural communication with visitors is guaranteed. The intercom can connect up to 500 indoor stations, making it suitable for extensive installations in administrative or residential complexes.

Durable construction and flexible installation

The robust metal body in IK08 design and water resistance according to IP65 allow for safe outdoor use even in demanding conditions. Installation is flexible thanks to support for power supply PoE (802.3af) or DC 12 V, and connection can be realized via RJ-45 wired interface or wirelessly via Wi-Fi (802.11b/g/n). Practical surface mounting facilitates deployment in various environments – from family houses to smaller residential complexes and commercial properties with multiple users, ensuring safe, modern, and convenient access.

Key features

• 4.3" touchscreen IPS display with a resolution of 800 × 480 px
• Physical button for direct calling
• RFID reader Mifare 13.56 MHz for chips and cards (up to 100,000 stored cards)
• Support for authorization using QR code
• 2× 2Mpx HD IR camera with WDR technology and face recognition (up to 10,000 images)
• Two-way voice communication with noise and echo cancellation
• Support for up to 500 indoor stations
• Durable construction IP65 / IK08 for outdoor use
• Power supply PoE (802.3af) or DC 12 V
• Connection via RJ-45 (10/100 Mbps) or Wi-Fi (802.11b/g/n)
• 2× relay for door lock control
