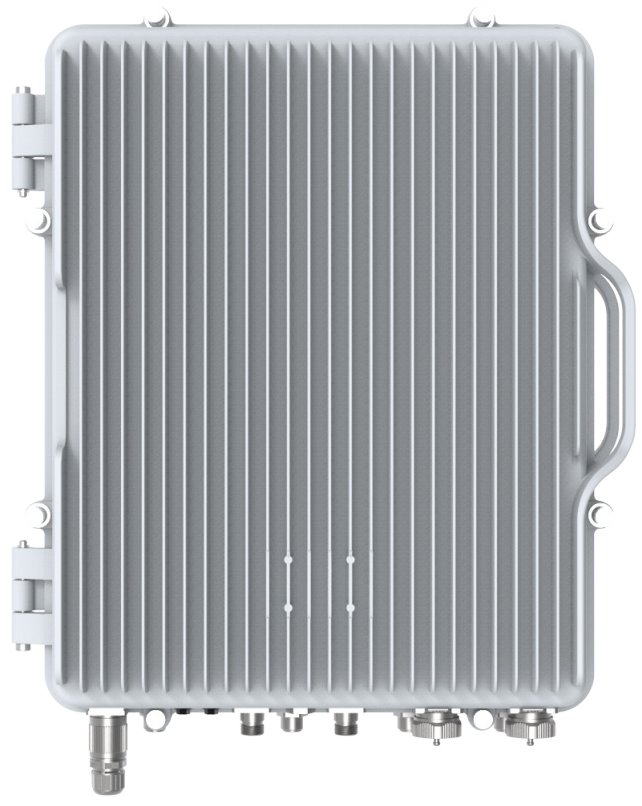

MikroTik P02003-B38B39-10W, InterCell 10 B38+B39 LTE base station

The MikroTik InterCell base station devices give you the ability to quickly expand an existing LTE solution, or even launch a new LTE mobile operator without the usual expense, infrastructure and size requirements.

The Intercell 10 B38+B39 is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2x2 MIMO with 10W output each RF channel ). The unit is compact, light weight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.

The InterCell outdoor device series includes several models, choose the best option depending on the required frequency band configuration. The devices support output power of up to 10W, providing city-wide coverage.

The new InterCell series by MikroTik are small LTE base stations which support up to 192 LTE client devices each. This is a perfect low-cost solution for ISPs, mobile operators and other businesses, that need to provide internet connectivity using LTE standard.

The units have features such as -48V telecom powering, SFP port, Gigabit Ethernet port, a built-in lightning arrestor and even supports EPC, working completely stand-alone (no central network core required) with up to 32 clients.

Features

• Standard TDD bands 38 and 39
• Peak data rate of each carrier (20 MHz)
• - DL 140Mbps (256QAM,SF2)
• - UL 30Mbps (64QAM,SF1)
• Peak data rate of carrier aggregation (20 MHz)
• - DL 280Mbps (256QAM,SF2)
• - UL 60Mbps (64QAM,SF1)
• Maximum 2 * 192 RRC connected users and 2 * 96 active users
• 5/10/15/20 MHz operation bandwidth
• All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP
• Plug-and-play with SON features, including self-configuration/self-optimization/self-healing
• High transmission power to extend NLOS coverage, low power consumption to save OPEX.
