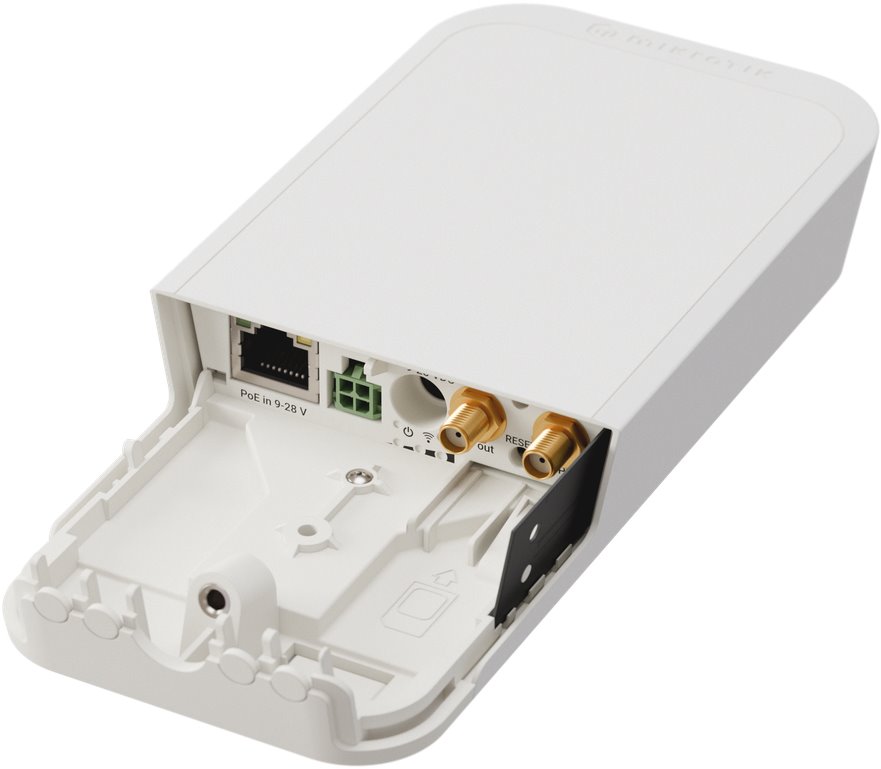

MikroTik wAP LR9G kit, LoRa9G kit

The WAP LoRa9G kit is a complete out-of-the-box solution for a LoRaWAN gateway featuring a pre-installed R11e-LR9G module with GPS (MT3337V). It includes 1 RJ45 Ethernet port, a 2.4 GHz Wi-Fi card for access point functionality, and a durable wAP enclosure designed for outdoor installation. The device features a built-in 2 dBi antenna and supports connection of an external antenna via SMA connector for extended range. It supports 902–928 MHz frequencies and is suitable for use in regions where this band is allowed.

Key Features

• LoRa 915 MHz support (AU915–928, US902–928, AS923, KR920–923)
• Built-in GPS module (MT3337V)
• Enhanced receiver sensitivity up to –141 dBm
• 2.4 GHz Wi-Fi (802.11b/g/n, dual-chain), 300 Mbps
• Three power input options: PoE, automotive 4pin, DC jack
• SMA connectors for external antennas (LoRa and GPS)
• Preinstalled UDP packet forwarder
• Durable outdoor-ready enclosure

What is LoRa good for?

The LoRa (Long Range) network is ideal for long-distance wireless communication with low power consumption, making it perfect for Internet of Things (IoT) applications. It operates in low-frequency bands and allows devices to connect over tens of kilometers, making it ideal for monitoring sensors, smart meters, or outdoor equipment. LoRa is excellent for areas with limited power access and for applications that require long battery life and reliable communication.

Package Contents

• Device
• (2) Mounting brackets
• PoE injector
• 24 V / 0.8 A power adapter
• Plastic stand
• Metal zip tie
• Screws and wall plugs
