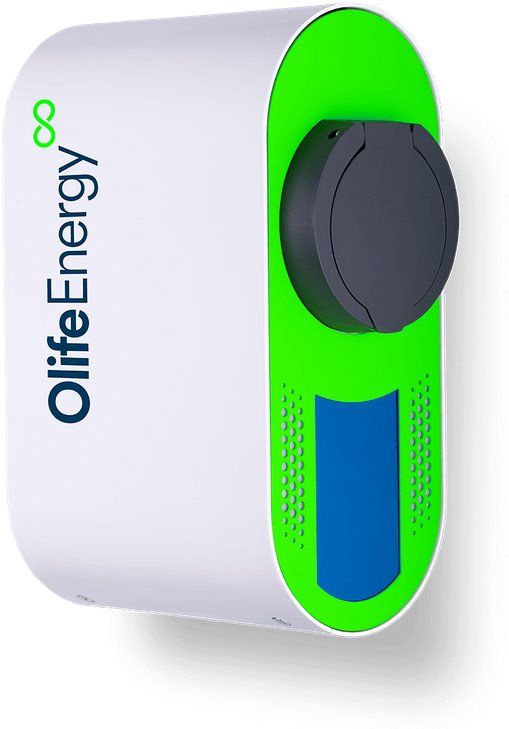

OlifeEnergy WallBox CLOUD, charging station with socket, 22kW

The OlifeEnergy Wallbox CLOUD charging station is designed for charging electric vehicles at home, in private garages, and guesthouses. It is equipped with a Type2 BASE socket. It features a robust all-metal design and the ability to charge electric vehicles with alternating current (AC) with a power of up to 22 kW. The device is also suitable for outdoor use. It can be installed either on a wall or on a special profile embedded in the ground. Using an external OlifeEnergy Smartmeter unit, the charging station's power can be dynamically managed, and excess energy from a solar power system or a favorable tariff can be utilized.

Charging can start automatically after connecting the vehicle, through RFID card identification, or via a mobile phone. The station's power can be adjusted within the range of 0 to 22 kW. The station can be connected to an HDO, integrated into a smart home system, connected to a battery storage system, or integrated with other control systems. Using an external OlifeEnergy SmartMeter unit, the station's power can be dynamically controlled to prevent circuit breaker shutdowns due to high consumption, charge from excess solar power, or take advantage of low tariffs.

The station includes only a socket. The cable is not included.

WallBox CLOUD

The charging station features enhanced functionality with the ability to connect to the OlifeEnergy Cloud service and an OCPP server. The OlifeEnergy Cloud service provides remote diagnostics, access management, and charging record tracking. It also allows for the operation of a public charging station. Through OlifeEnergy Cloud, the power of multiple stations can be dynamically managed, and integration with existing monitoring and control (MaR) systems is possible.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
