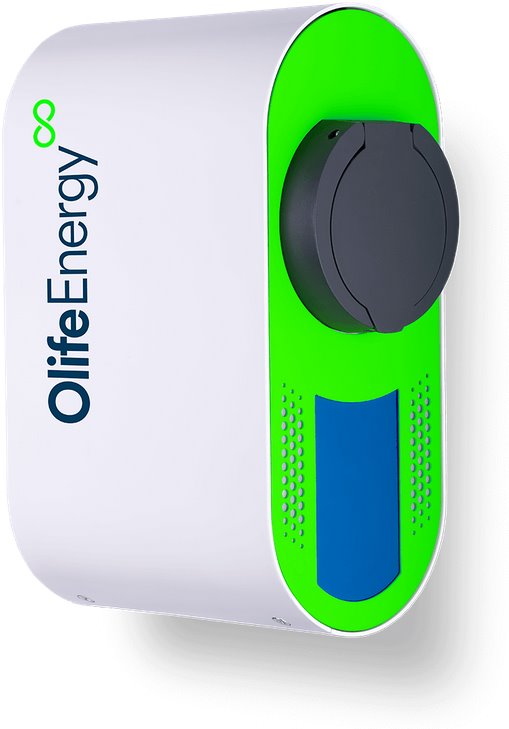

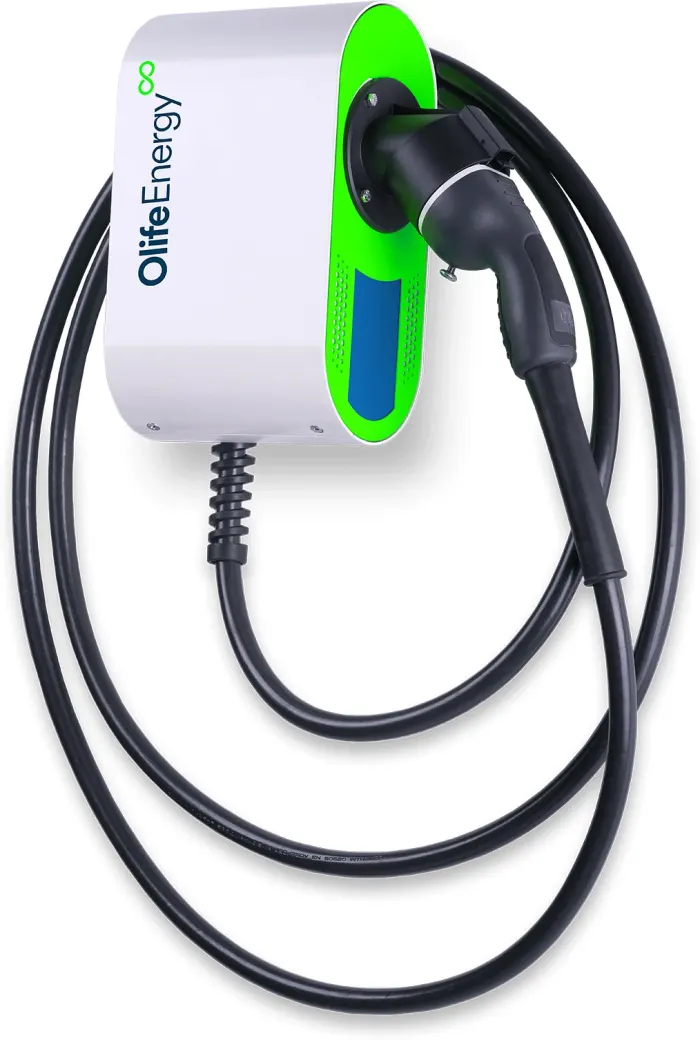

OlifeEnergy WallBox PLUS, charging station with socket, 22kW

The OlifeEnergy Wallbox PLUS charging station is designed for charging an electric vehicle at home, in private garages, and in guesthouses. It is equipped with a Type2 BASE socket. The station features a robust all-metal design and the capability to charge electric vehicles with alternating current (AC) with a power output of up to 22 kW. The device is also suitable for outdoor use. It can be mounted on a wall or installed on a special profile embedded in the ground. Using the external OlifeEnergy SmartMeter unit, the charging station's power can be dynamically managed, and excess energy from a solar power plant or a favorable tariff can be utilized.

Charging can be started automatically when the vehicle is connected, by identification using an RfID card, or via a mobile phone. The power output of the station can be adjusted from 0 to 22 kW. The station can be connected to HDO, integrated into a smart home, connected to a battery storage system, or integrated with other control systems. The external OlifeEnergy SmartMeter unit allows for dynamic power management, preventing breaker shutdowns due to high consumption, charging from solar energy surpluses, or using a low-cost tariff.

The station includes only a socket. The cable is not included.

WallBox PLUS

The PLUS version of the AC station provides full control over charging. It offers remote operation via the home network. When connected to the app, it enables monitoring and managing charging, user authorization, and access to historical data and energy consumption for each user. The stations are also equipped with communication capabilities with inverters from leading manufacturers, allowing them to efficiently utilize surplus solar energy and energy from battery storage for charging.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
