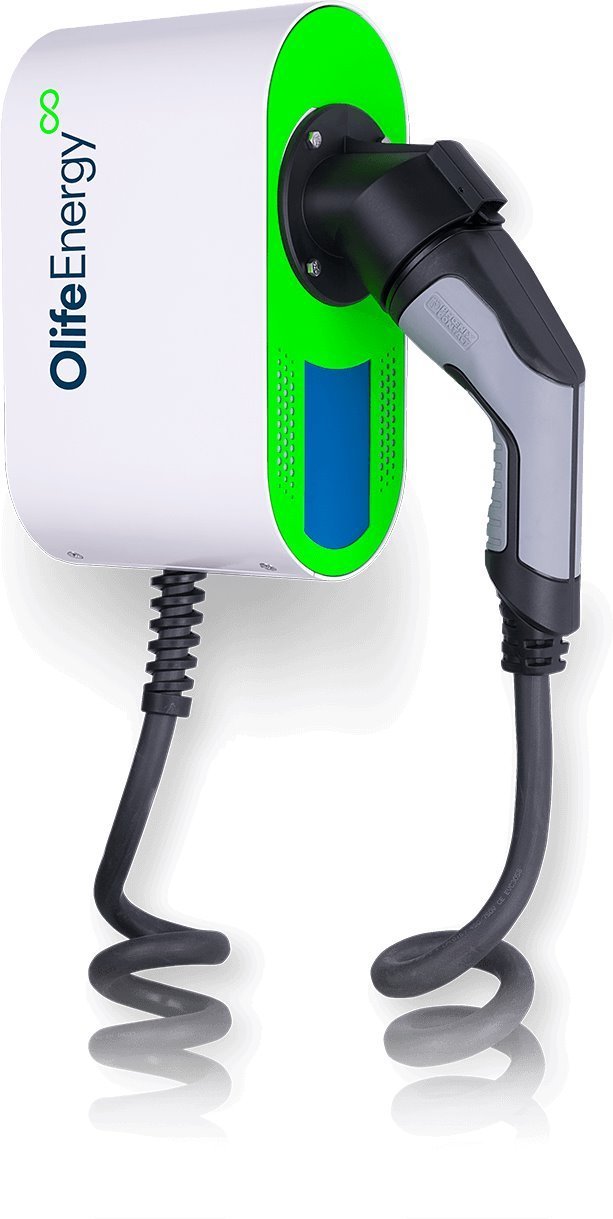

OlifeEnergy WallBox PLUS, charging station with twisted cable, 22kW

The OlifeEnergy Wallbox charging station is designed for charging electric vehicles at home, in private garages, and in guesthouses. It is equipped with a 5-meter twisted cable with a Type2 BASE connector. It features a robust all-metal design and the ability to charge electric vehicles with alternating current (AC) up to 22 kW. The device is also suitable for outdoor use. It can be installed either on a wall or on a special profile embedded in the ground. Using the external OlifeEnergy Smartmeter unit, the charging station's performance can be dynamically controlled, and surplus energy from a solar power system or advantageous tariffs can also be utilized.

Charging can be started automatically upon vehicle connection, identification via RfID card, or through a mobile phone. The station's performance can be set in the range from 0 to 22 kW. The station can be connected to HDO, integrated into a smart home, connected to a battery storage system, or integrated with other regulatory systems. Using the external OlifeEnergy SmartMeter unit, the station's performance can be dynamically controlled, preventing the circuit breaker from tripping during high consumption, charging from solar power surplus, or from a low tariff.

WallBox PLUS

The AC station in the PLUS variant offers full control over the charging process. It provides remote control through the home network. Once connected to the application, it allows monitoring and management of charging, user authorization, along with overviews of each user's energy consumption history. The stations are also equipped with communication capabilities with inverters from leading manufacturers, efficiently utilizing solar energy surplus and energy from storage batteries for charging.

Model ComparisonBASEPLUSCLOUD Circuit breaker protection Charging at low tariffs / spot prices Static output current setting (according to the upstream circuit breaker) Control and configuration via local bus (Modbus RTU over RS 485) Dynamic power control based on other consumption Integration with smart home RfID authorization10xunlimitedunlimited Charging records and user management Communication with PV inverter Billing capability Monitoring 1/4 hour peak Remote configuration and controllocal networkinternet OlifeEnergy Cloud (data backup on server), OCPP
