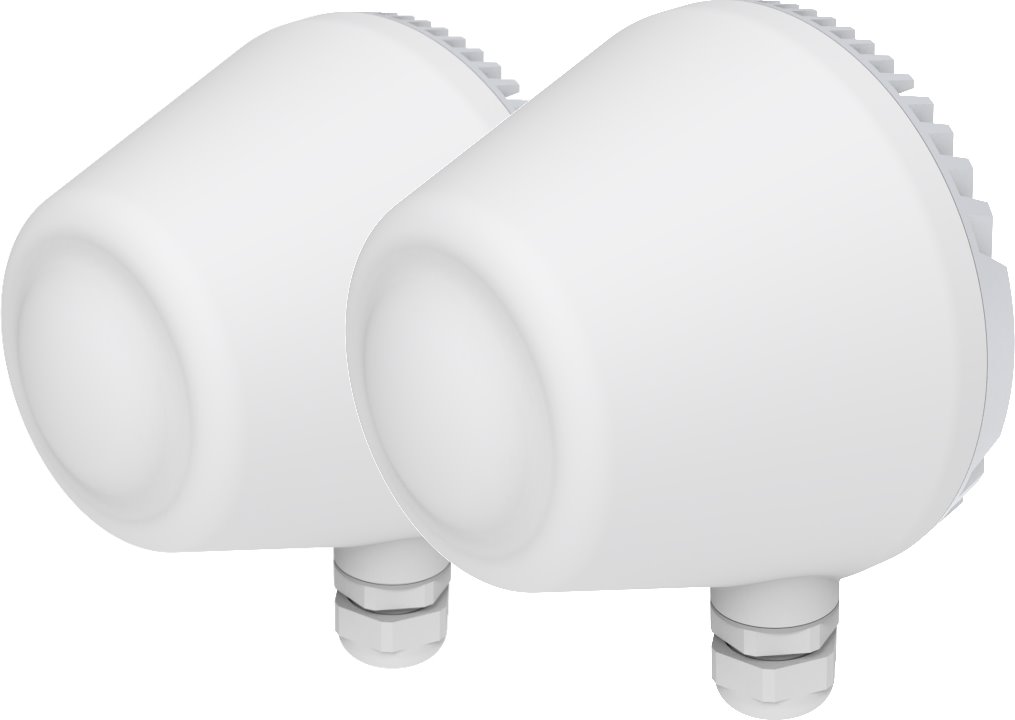

Tachyon TNA-303L-65-LIB, Preconfigured 60 GHz PtP link

Modern client units from the manufacturer Tachyon provide full support for the unlicensed band 60 GHz (57–71 GHz) and seamless compatibility with existing TNA infrastructure. Thanks to the integrated 32dBi antenna with a narrow 8° radiation angle, it ensures stable and secure connections even in challenging environments. It offers data transfer speeds of up to 1 Gbps in an ultra-compact and affordable design, ideal for the ISP segment, camera systems, or building connections.

Flexible deployment and easy installation

The support for PTP and PTMP client modes allows for wide usage possibilities according to project needs. There is a gigabit ethernet port with PoE-IN (38–57 V) with a maximum consumption of just 15 W. A practical USB-A port for connecting a 2.4GHz WiFi adapter significantly facilitates the installation and precise aiming of the unit in the field. The result is rapid deployment, high efficiency, and reliable operation without compromise.

Kit for wireless connection of two locations

The preconfigured 60 GHz PtP link includes two TNA-303L-65 units already paired from the factory and ready for point-to-point connection. Just mount them and aim them at each other. The package also includes mounting brackets and PoE power supplies. If you need to connect two buildings at a distance of up to around 3 km, this option is the simplest solution.

Key features

• Band 60 GHz (57–71 GHz)
• Speed up to 1 Gbps
• Integrated 32 dBi antenna (8°)
• PTP and PTMP client modes
• Gigabit ETH port with PoE-IN (38–57 V)
• USB-A port for 2.4GHz WiFi adapter
• Maximum consumption 15 W
• Compact design
• Preconfigured PtP link and Plug-and-play support

Contents of the package

• (2) TNA-303L-65 unit with mounting plate
• (2) Standard holder TNA-M-L
• (2) Passive PoE adapter - 48V / 0.5A
• (2) Power cable
