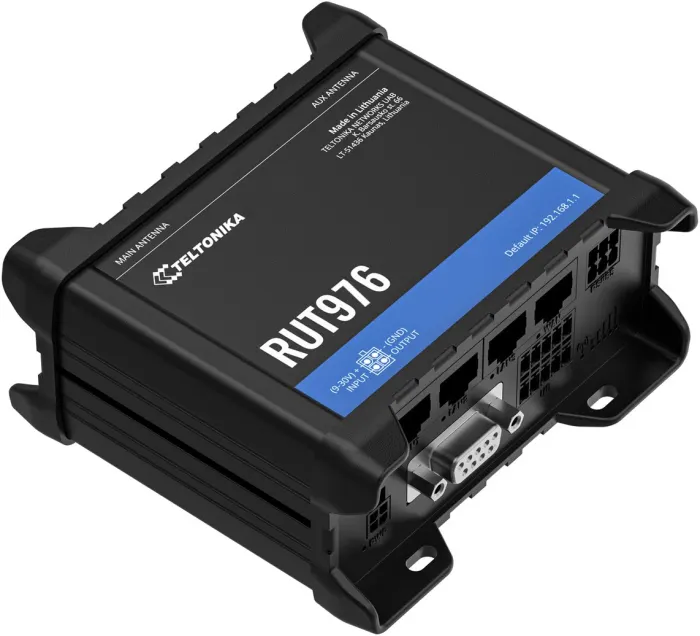

Teltonika RUT976 Industrial cellular RedCap 5G Wi-Fi Router, RS232 and RS485, GPS

The compact industrial 5G mobile router is designed for demanding environments of industrial applications. It offers reliable connectivity thanks to the integrated 5G/4G/LTE modem, 2x SIM with automatic switching, 2.4 GHz Wi-Fi (802.11n), GNSS, USB, digital I/O, and relay. It is equipped with 3x 10/100 Mbps LAN and a 10/100 Mbps WAN port, allowing flexible connections and supporting WAN failover for backup connectivity in case of failure. With remote management via RMS and extensive VPN capabilities, it is an ideal solution for secure and efficient communication in industrial systems.

Key Features

• Mobile connectivity 5G/4G/LTE - 233 / 123 Mbps - high throughput, low cost
• Dual-Band Wi-Fi: 802.11b/g/n, speed 300 Mbps
• (2) SMA female (LTE) + (2) RSMA female (Wi-Fi) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (3) 10/100 Mbps LAN + 10/100 Mbps WAN
• (2) mini SIM slot (2FF format), automatic switching
• (3) digital input/output + (1) analog input
• (1) SPST relay output (40 V, 4 A)
• Power supply type: 4-pin automotive (9 - 30 V DC)
• RS232 and RS485 port
• USB 2.0 - for connecting external HDD, modem, printer, USB serial adapter, etc.
• Remote management RMS and extensive VPN options

Package Contents

• Device
• 9V / 1A power adapter
• Patch cable 1.5m
• (2) LTE antenna (SMA male)
• (2) Wi-Fi antenna (SMA male)
• (1) GNSS antenna (SMA male)
• RS232 and RS485 connectors
• Kit with SIM adapters
