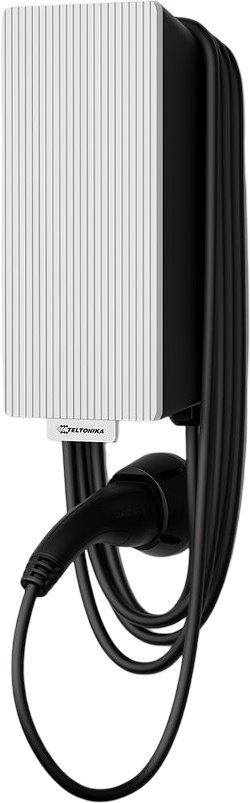

Teltonika TeltoCharge EVC2 charging station for electric cars with 7.5m cable, 22kW, 3 phase, Type 2, no cover

The Teltonika charging station for electric vehicles has been designed for demanding conditions where the weather does not ask. With an IP56 rating and IK10 anti-vandal protection, it reliably withstands rain, dust, and impacts, and operates in extreme temperatures from -30 °C to +50 °C. European manufacturing with strict quality control ensures long lifespan and safe operation. Elegant wall installation with the option of cable entry from the back or bottom preserves a clean appearance and maximum protection. Replaceable front panels in several colors allow for matching with homes and corporate environments.

Smart charging under your control

Three-phase power 400 V with a power of up to 22 kW and a Type 2 socket ensures compatibility with every electric vehicle or PHEV. Connection via Wi-Fi, LAN, Bluetooth, or RS-485 (Modbus) opens the way for full management and remote control. The mobile app in 25 languages offers smart scheduling, detailed statistics, and cost optimization. Set it once, and the charging adapts to your routine – efficiently, safely, and without worries.

Benefits compared to the first generation

• Integrated 4G/LTE connection (eSIM / Dual SIM)
• Dynamic and multi-level load balancing
• OCPP 1.6 and remote management via RMS
• Integrated RCD protection (no Type B residual current device needed)
• Separate mounting plate for easy installation
• Larger connection terminals (up to 10 mm2)

Key features

• IP56 protection rating – dust and water resistance
• IK10 anti-vandal protection – high mechanical resistance
• Power up to 22 kW – three-phase 400 V
• Type 2 socket – compatible with EV and PHEV
• Communication - Wi-Fi, LAN, Bluetooth, RS-485 (Modbus)
• Control via mobile app (25 languages)
• Wall installation, cable entry from the back or bottom
• Operating temperature -30 °C to +50 °C
• Replaceable front panels (optional)
• Includes a 7.5-meter long cable
