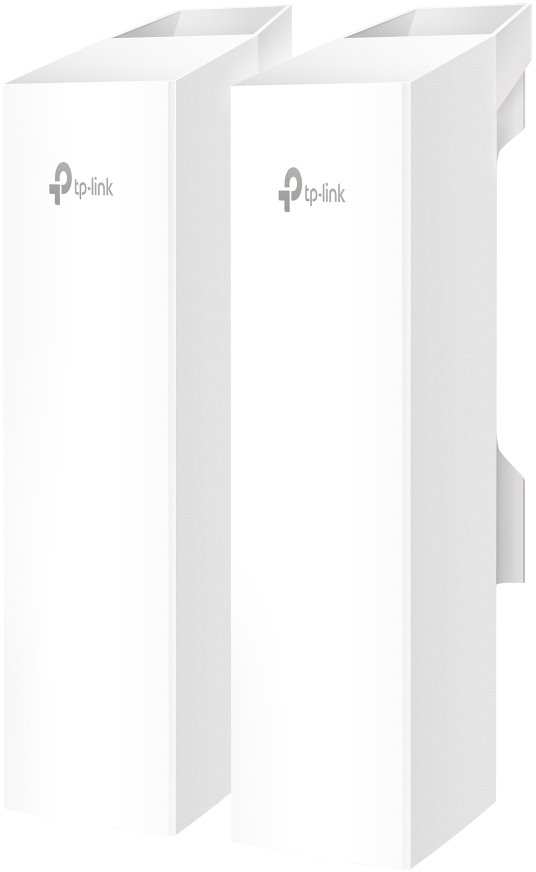

TP-Link EAP211-Bridge KIT Omada Wireless bridge, 5 GHz, 2 units

The wireless Bridge KIT is used to connect two buildings or places at a distance of up to 1 km within the central administration of Omada SDN. The units work in the 5 GHz wireless spectrum with 802.11ac protocol, modulation speeds up to 866 Mbps and feature an outdoor design with IP65 protection, mast mounting, automatic pairing and easy aiming thanks to the LEDs on the side of the device. 3 Gigabit LAN ports are used for network connection, one of which enables passive 24V PoE. Another power supply option is via a 12V DC jack in the case of internal installations.

Key Features

• Simple deployment - automatic pairing of the wireless link
• Wireless frequency 5 GHz (802.11ac), modulation speed 866 Mbps
• Antenna gain 7 dBi, 2x2 OUT
• Range up to 1,000 m
• (3) Gigabit LAN - 1x PoE-IN support
• Power supply via 12V DC jack or 24V passive PoE
• Outdoor design, degree of protection IP65
• Management via Omada SDN or web interface

Package contents

• (2) Equipment
• (2) Gigabit PoE adapter 24 V
• (2) Power cord
• (4) Tie-down tape
• Pegs and screws
