Ubiquiti UA-G3-SK-Elevator, UniFi Access Elevator Starter Kit, G3

The UniFi Access Elevator Starter Kit from Ubiquiti Networks includes components for the UniFi Access control system designed for installation in elevators. The Elevator Hub supports up to 18 floors (with relay 30V / 2A) and offers digital inputs for monitoring cabin status and emergency situations. It connects to the reader (G3 Reader) in the elevator, which authorizes access to individual floors. The Elevator Hub is powered via PoE and communication with the reader is ensured by a two-wire cable through the extenders included in the package.

The installation of the entire system is very quick, easy, and offers simple management of users, visitors, schedules, and levels, as well as access permissions through the UniFi Access Controller. The new generation has a PoE budget of 45 W.

Note: operation of the UniFi Access system requires the UniFi Dream Machine Pro.

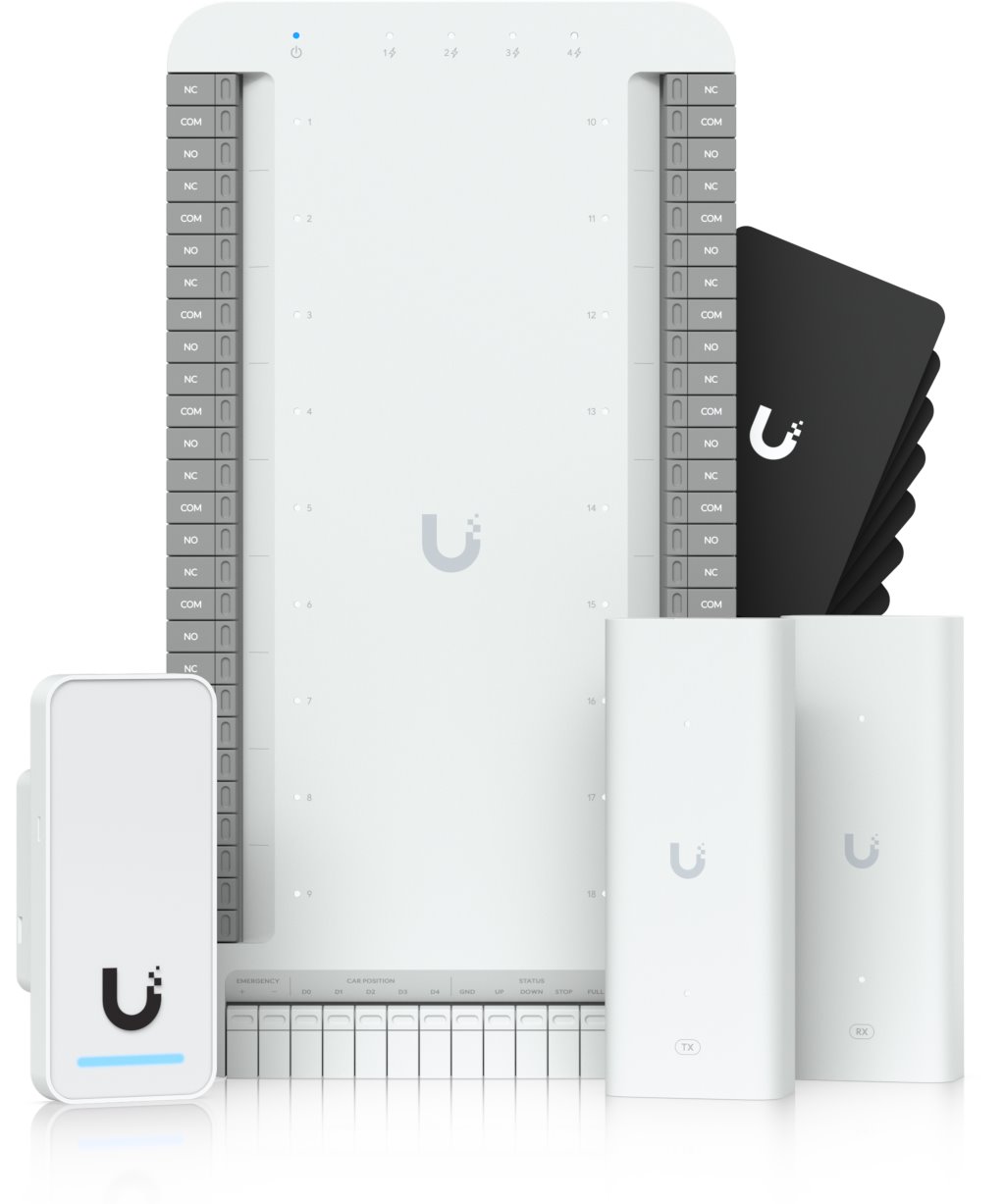

Package Contents

• (1) UniFi Access Hub (hub / controller)
• (1) UniFi Access Reader G3 (reader)
• (2) Converter from LAN to two-wire cable
• (10) UniFi Access Card (access card)
• DIN rail
• Screws + anchors
