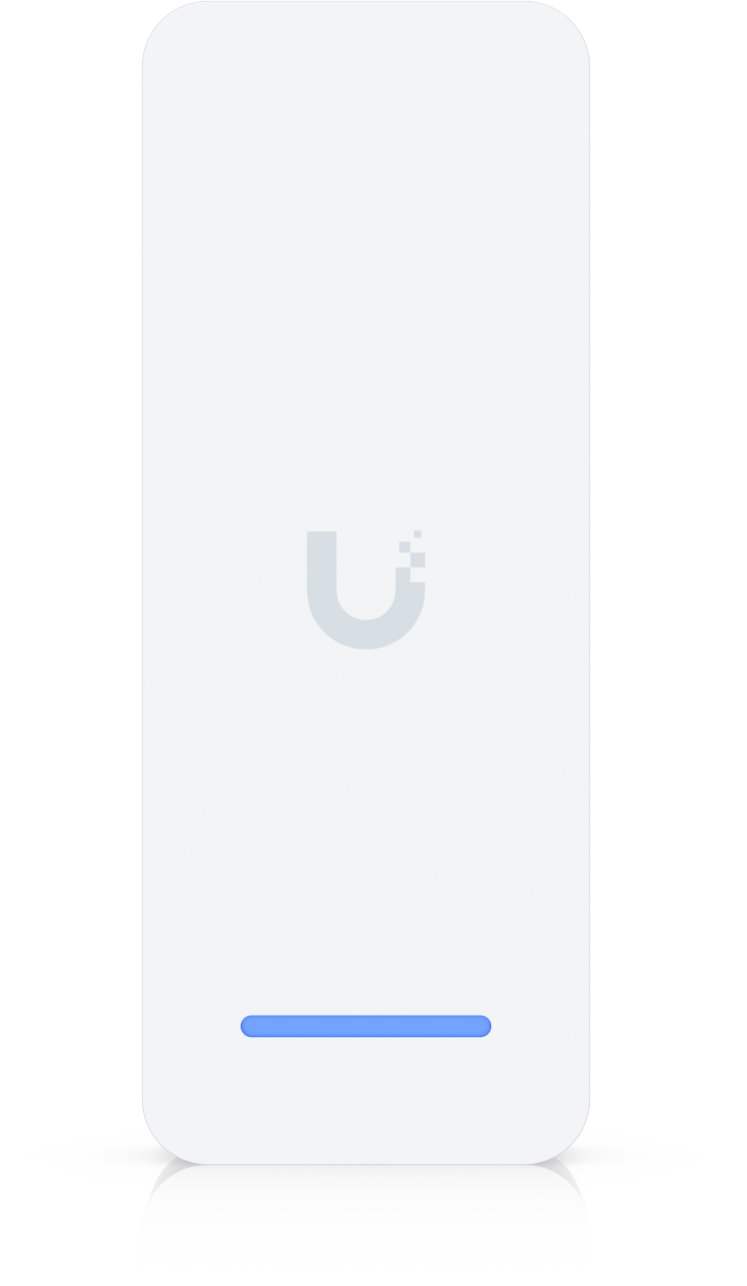

Ubiquiti UA-Retrofit-Reader-W, UniFi Access Retrofit Reader, white

The universal reader supports OSDP v2 for encrypted data transmission and allows authentication using NFC cards and fobs, Apple Wallet, Google Wallet, and mobile unlocking via Bluetooth 4.1. This ensures reliable and secure access control, even when using existing wiring through the UniFi Retrofit Hub. The option for cascading up to two readers on one door provides a convenient solution for entry and exit without the need for additional wiring.

Durable construction for outdoor and indoor use

The polycarbonate and aluminum alloy with a IP55 rating guarantees operation in extreme temperatures ranging from -30 to +50 °C, while protection against electrostatic discharge (ESD) of up to ±15 kV air and ±8 kV contact ensures safe operation of the device. Colored LED signaling and an integrated speaker provide immediate feedback to the user, and compact dimensions of 117 × 45 × 45 mm allow for easy wall mounting or installation in a standard electrical box.

Easy management and international standards

Management and configuration are centralized through the UniFi Access app, which allows monitoring, setting access rights, and verifying the current software version. The reader meets CE, FCC, and IC certifications, as well as NDAA requirements, ensuring high security standards. Low power consumption of up to 2.5 W at 12 V DC and the supplied stainless steel mounting material complement the professional design for modern access systems.

Key features

• Secure encrypted data transmission via OSDP v2
• Support for NFC cards, Apple Wallet, Google Wallet, and Bluetooth 4.1
• Cascading up to two readers on one door
• Durable construction with IP55 rating for outdoor and indoor use
• Protection against electrostatic discharge (ESD) ±15 kV air, ±8 kV contact
• Colored LED signaling and integrated speaker for feedback
• Centralized management via UniFi Access, CE, FCC, IC certifications, and NDAA compliance
• Low power consumption of 2.5 W when powered at 12 V DC

Supported reading technologies

• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire

Package contents

• Device
• (3) adapters for mounting on a box
• Screws, anchors
• Screwdriver
• Terminal block
