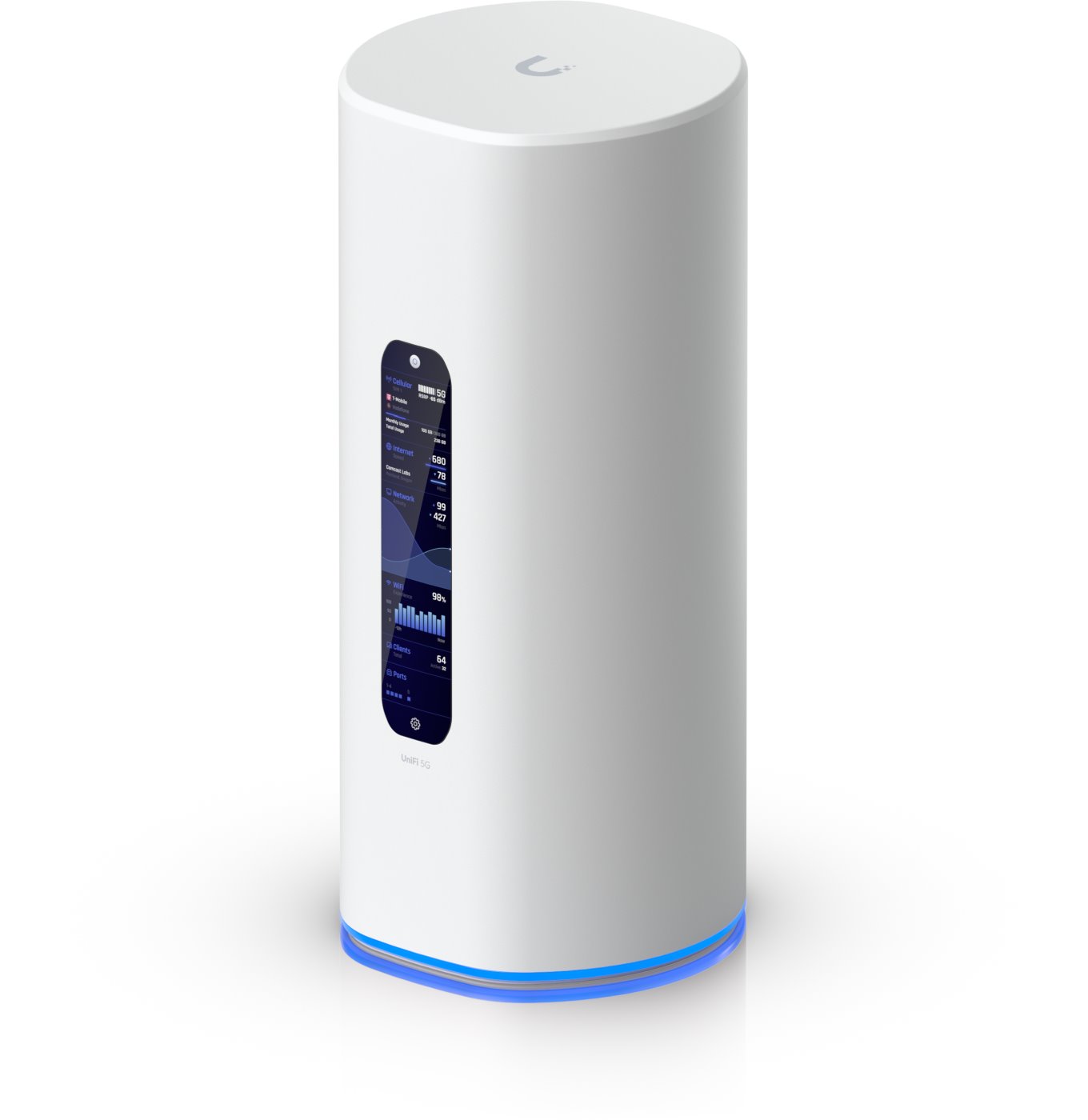

Ubiquiti UDR-5G-MAX, UniFi Dream Router 5G Max

The device offers a combination of high performance and robust security, ideal for modern homes and offices with a mix of mobile 5G and wired connections. With a throughput of 2.3 Gbps IDS/IPS and support for up to 300 clients, it handles demanding applications and intense network traffic without compromise. Advanced features, such as application-dependent firewall and content filtering with over 20,000 IDS/IPS signatures, ensure a high level of data protection and stable network operation even in risky environments.

Flexible Connectivity and Modern Technology

The integrated WiFi technology supports standards WiFi 6/6E and WiFi 7 with a maximum speed of up to 5.7 Gbps in the 6 GHz band, enabling quick and reliable connections for all devices. The router offers multiple WAN ports, license-free SD-WAN, and IPsec for flexible connections to various networks. With NVR storage with a pre-installed 64 GB microSD card and an advanced UniFi device ecosystem, network management is simple and efficient.

Key Features

• 2.3 Gbps IDS/IPS – high throughput for demanding applications
• Support for up to 300 clients – stable connection for multiple devices
• Application-dependent firewall and 20,000+ IDS/IPS signatures – advanced security
• NVR storage with 64 GB microSD – integrated storage and data management
• Transmission speeds – 2.4 GHz: 688 Mb/s, 5 GHz: 4,334 Mb/s, 6 GHz: 5,765 Mb/s
• WAN speed (1) 100M/1G/2.5G
• LAN speed (3) 100M/1G/2.5G
• Optical interface (1) 10Gbps WAN
• Mobile 5G speeds up to 1800 / 650 Mbps
• SIM slot + eSIM
• PoE budget 15.4 W

Package Contents

• Device
• Power adapter 54V / 1.1A
• Power cable
• Ethernet cable for network connection
